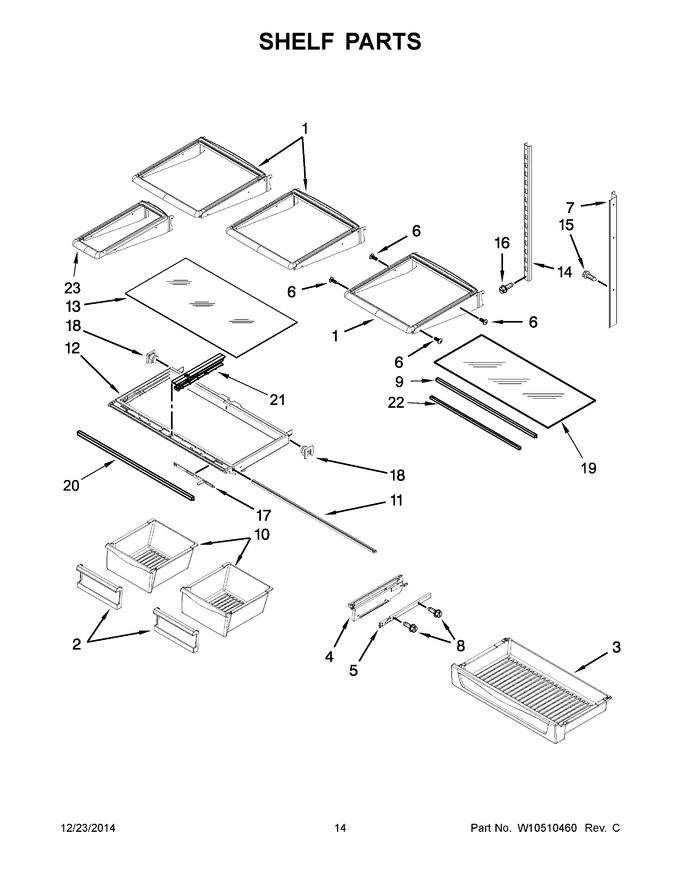

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11402525 | Shelf, Glide Out (Replaces: 12883507) |
|
$ 211.00 | |||||
| 2 | WP67005923 | Front, Crisper Pan (Replaces: 12802602SP) |
|
$ 71.22 | |||||
| 3 | WPW10330534 | Pan, Pantry (Replaces: W10330534) |
|
$ 165.76 | |||||
| 4 | W10395616 | Endcap, Pantry (left Hand) |
|
$ 22.89 | |||||
| 5 | W10346889 | Runner, Cab (left Hand) |
|
- | |||||
| 6 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 7 | W10251968 | Ladder, Side (left Hand) |
|
$ 24.64 | |||||
| 8 | W10185612 | Screw |
|
$ 6.37 | |||||
| 9 | W11812285 | Trim, Pantry Glass (Replaces: 12655902SP) |
|
$ 48.00 | |||||
| 10 | WP67004515 | Pan, Crisper (Replaces: 12804601SP) |
|
Immediately | $ 159.05 | ||||
| 11 | WP12642303WD | Brace, Crisper Cover (Replaces: 12642303WD) |
|
$ 101.03 | |||||
| 12 | WPW10329866 | Frame, Crisper (Replaces: W10329866) |
|
$ 237.94 | |||||
| 13 | WP67006704 | Glass, Crisper (Replaces: 12204824) |
|
$ 237.09 | |||||
| 14 | W10273464 | Ladder, Center |
|
Immediately | $ 27.17 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 16 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.54 | |||||
| 17 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 18 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 76.38 | |||||
| 19 | WP12204826 | Shelf, Glass (Replaces: 12204826) |
|
$ 228.67 | |||||
| 20 | WPW10231345 | Trim, Crisper (Replaces: W10231345) |
|
$ 123.90 | |||||
| 21 | WPW10326469 | Rail, Center Crisper (Replaces: W10326469) |
|
Immediately | $ 30.03 | ||||
| 22 | WP12227305WD | Brace, Pantry (Replaces: 12227305WH) |
|
$ 97.52 | |||||
| 23 | W11197490 | Shelf, Mini Stationary (Replaces: 12885501) |
|
$ 217.85 | |||||
| 4A | W10395615 | Endcap, Pantry (right Hand) |
|
$ 26.62 | |||||
| 5A | W10346888 | Runner, Cab (right Hand) |
|
- | |||||
| 7A | W10251965 | Ladder, Side (right Hand) |
|
$ 27.97 |
