SELECT A DIAGRAM

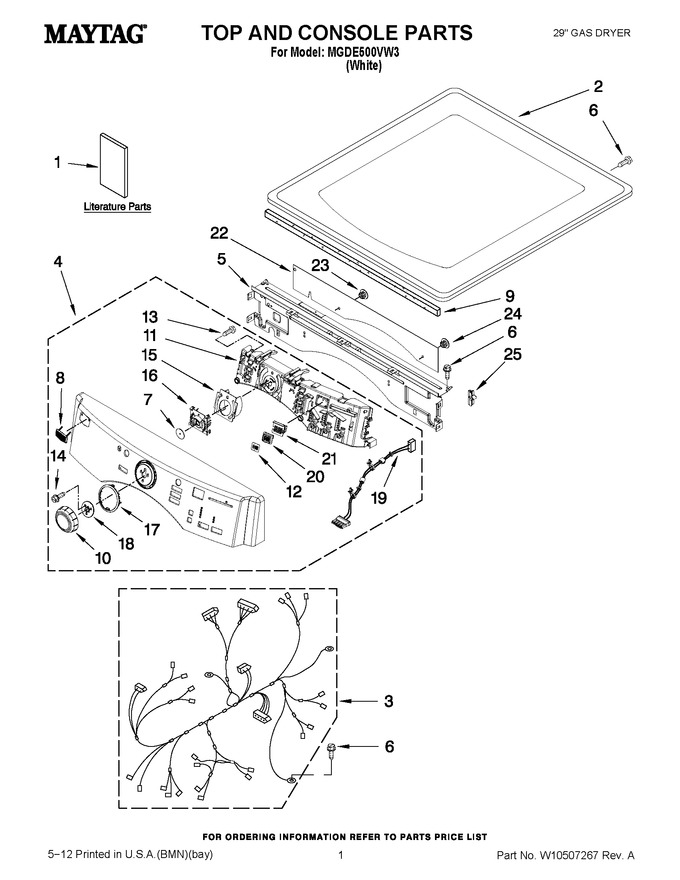

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10293911 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239302 | Use & Care Guide |
|
- | |||||
| 1 | W10471645 | Installation Instructions |
|
- | |||||
| 1 | W10298850 | Tech Sheet |
|
- | |||||
| 2 | 3980634 | Top |
|
- | |||||
| 3 | W10111069 | Harness, Main |
|
$ 273.58 | |||||
| 4 | W10246750 | Console Assembly |
|
- | |||||
| 5 | W10215656 | Bracket, Console (includes No. 9) |
|
$ 72.06 | |||||
| 6 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 7 | 8572039 | Seal, User Interface |
|
- | |||||
| 8 | W10732500 | Medallion (Replaces: W10316087) |
|
$ 45.43 | |||||
| 9 | W10112267 | Foam-seal Control Bracket |
|
$ 97.53 | |||||
| 10 | W10164576 | Knob |
|
$ 56.77 | |||||
| 11 | W10269025 | Techbox Assembly |
|
$ 232.06 | |||||
| 12 | W10171504 | Foil-display |
|
$ 13.42 | |||||
| 13 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 14 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.94 | |||||
| 15 | W10170295 | Frame-light Guide |
|
- | |||||
| 16 | W10170293 | Guide, Light Cylcle Internal |
|
$ 94.31 | |||||
| 17 | W10164567 | Cycle, Light Guide |
|
$ 68.85 | |||||
| 18 | W10172298 | Bushing, Knob |
|
$ 13.40 | |||||
| 19 | W10242907 | Power Cable User Interface |
|
$ 170.35 | |||||
| 20 | W10164578 | Guide, Light (3-way Digital) |
|
$ 15.96 | |||||
| 21 | W10171502 | Frame-light (guide Display) |
|
$ 16.93 | |||||
| 22 | W10215674 | Shield, Console Bracket |
|
$ 33.47 | |||||
| 23 | W10216201 | Plug-hole,1/4``(2) |
|
- | |||||
| 24 | W10216202 | Plug-hole,5/16``(1) |
|
- | |||||
| 25 | W10214555 | Plug, Connector Frame |
|
$ 6.94 |
