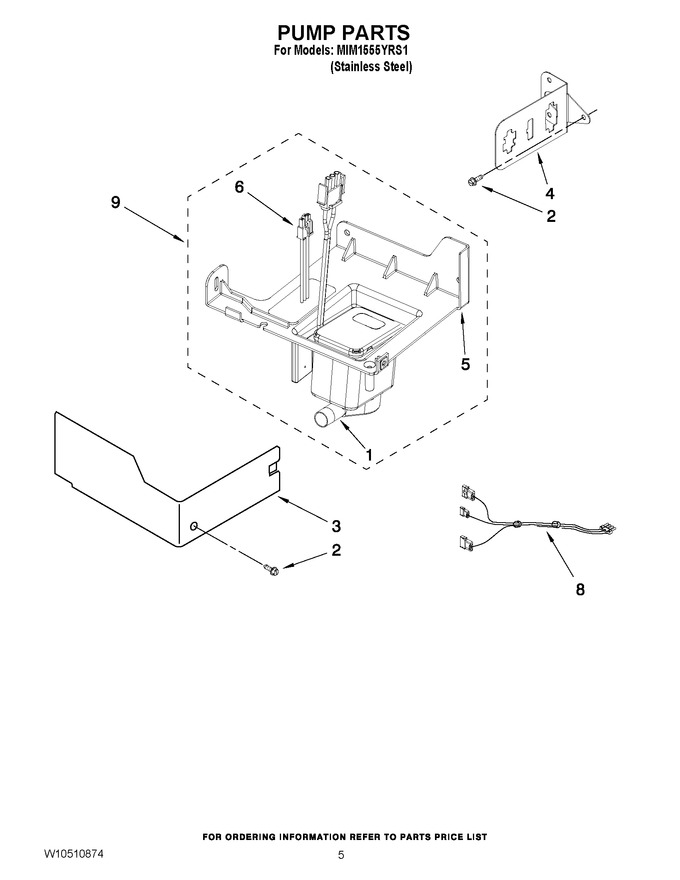

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11566405 | Pump-recirculating (Replaces: 2313628) |
|
$ 133.52 | |||||
| 2 | WP3400884 | Screw 8-18 X 5/8 (Replaces: 3400884) |
|
$ 8.10 | |||||
| 3 | 2185677 | Cover, Pump |
|
$ 94.95 | |||||
| 4 | 2313844 | Bracket, Connector Assembly |
|
$ 94.74 | |||||
| 5 | W11204894 | Bracket-pump (Replaces: 2313627) |
|
$ 71.89 | |||||
| 6 | 2313643 | Sensor-water Level |
|
- | |||||
| 8 | WPW10340992 | Wiring Harness Main To Pump (Replaces: W10340992) |
|
$ 154.19 | |||||
| 9 | 2313702 | Pump Assembly |
|
$ 305.04 |
