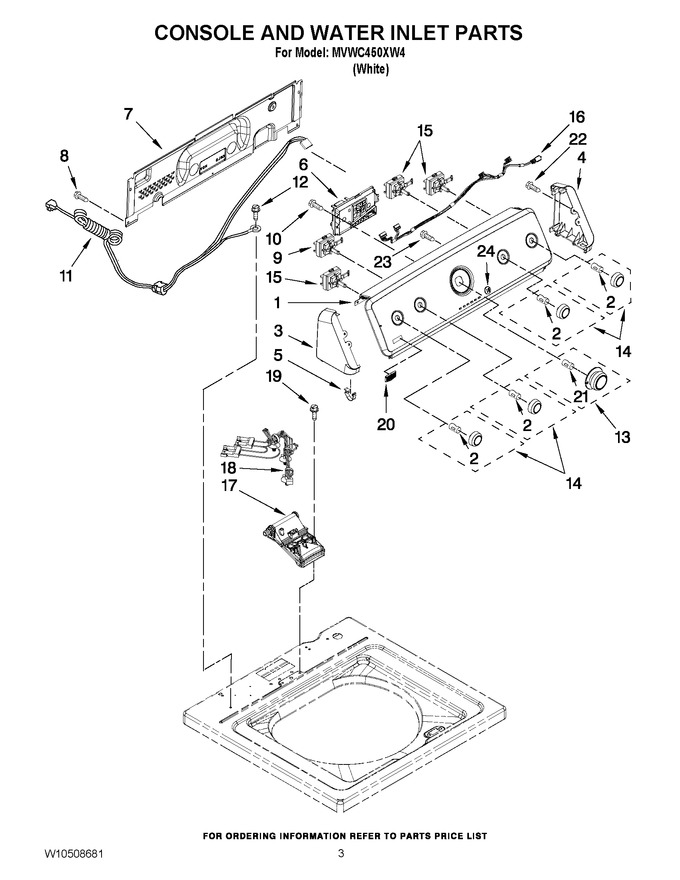

01 - Top And Cabinet Parts


02 - Console And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251338		Panel, Console				$ 215.90
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 8.20
3	WPW10193824		Cap, End (l.h.) (includes Item 5)   (Replaces: W10193824)				$ 74.39
4	WPW10193821		Cap, End (r.h.) (includes Item 5)   (Replaces: W10193821)				$ 74.72
5	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10480274		Control Unit Assembly, Machine & Motor				$ 478.52
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 190.47
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 163.41
12	W10846509		Screw, Power (cord Ground)   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10317454		Knob, Timer   (Replaces: W10317454)				$ 63.47
14	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 63.33
15	WPW10285511		Switch, Rotary Encoder   (Replaces: W10285511)			Immediately	$ 182.10
16	W10291177		Harness, Upper				$ 152.67
17	WPW10683603		Inlet Assembly, Water   (Replaces: W10423125)			Immediately	$ 81.56
18	W10876654		Harness, Valve   (Replaces: W10423127)				$ 194.92
19	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
20	W10323734		Badge				$ 63.95
21	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 8.20
22	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
23	3400073		Screw		Appelez-nous	-
24	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 76.00
