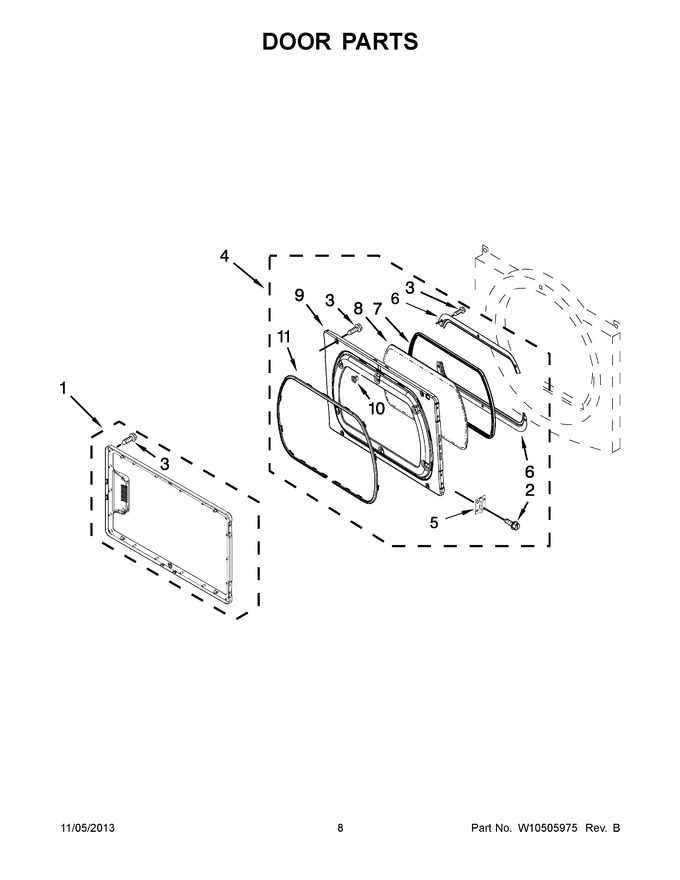

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10461891		Door, Outer (cosmetallic)				$ 341.28
2	WP488627		Screw   (Replaces: 342055)				$ 7.57
3	WP3373329		Screw   (Replaces: 3393258)				$ 7.68
4	W11652037		Assembly, Inner Door   (Replaces: W10513690)				$ 198.95
5	WPW10279703		Hinge, Spring Assembly (silver)   (Replaces: W10279703)				$ 72.22
6	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 17.15
7	W11676508		Seal, Window   (Replaces: W10284122)				$ 27.02
8	WPW10284121		Glass, Door   (Replaces: W10284121)				$ 251.06
9	W10822056		Door, Inner   (Replaces: W10470571)				$ 208.70
10	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
11	WPW10354795		Seal, Door   (Replaces: W10354795)				$ 123.92
