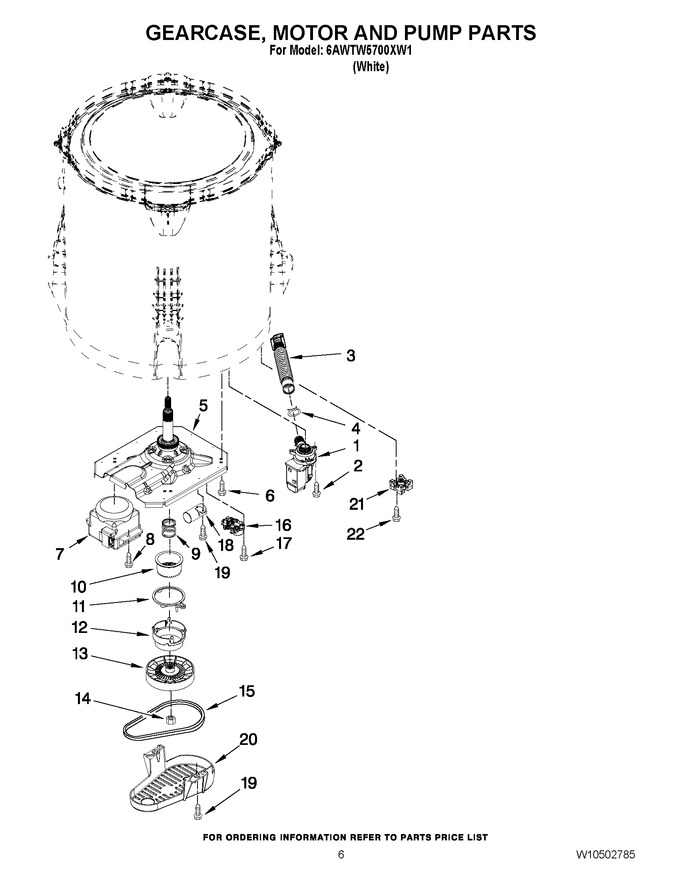

04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10292579		Pump Assembly, Drain   (Replaces: W10292579)			Immediately	$ 328.86
2	WPW10004910		Screw   (Replaces: W10004910)				$ 8.39
3	W10899966		Hose, Inner Drain Assembly   (Replaces: W10215091)			Immediately	$ 35.78
4	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
5	W11132267		Gearcase Assembly (includes Items 7, 8, 9, 10 & 13 On Page 5)   (Replaces: W10006379)			Immediately	$ 305.02
6	WPW10249633		Screw   (Replaces: W10249633)			Immediately	$ 7.55
7	W10836351		Motor, Drive   (Replaces: W10249630)				$ 335.83
8	W11685857		Screw   (Replaces: W10094780)				$ 14.81
9	W10721967		Spring, Splutch (includes Items 10, 11, 12 & 13)   (Replaces: W10006382)			Immediately	$ 55.68
10	W10721967		Slider, Splutch (includes Items 9, 11, 12 & 13)   (Replaces: W10006352)			Immediately	$ 55.68
11	W10721967		Cam Ring, Splutch (includes Items 9, 10, 12 & 13)   (Replaces: W10006353)			Immediately	$ 55.68
12	W10721967		Cam, Splutch (includes Items 9, 10, 11 & 13)   (Replaces: W10006354)			Immediately	$ 55.68
13	W10759993		Pulley   (Replaces: W10246453)			Immediately	$ 41.16
14	W10759923		Nut, Pulley   (Replaces: W10163336)				$ 8.35
15	WPW10006388		Belt, Drive   (Replaces: W10006388)				$ 93.39
16	W11336577		Actuator, Shift   (Replaces: W10249623)				$ 178.11
17	W11596033		Screw   (Replaces: 9741052)				$ 14.23
18	W10804679		Capacitor, Motor Run   (Replaces: W10349183)				$ 134.56
19	WP273556		Screw   (Replaces: 357640)			Immediately	$ 8.43
20	WPW10427633		Shield, Pulley Cover   (Replaces: W10006383)			Immediately	$ 49.78
21	W10238318		Counterweight				$ 30.66
22	WPW10238319		Screw   (Replaces: W10238319)				$ 7.98
