01 - Cover Sheet


02 - Cabinet Parts

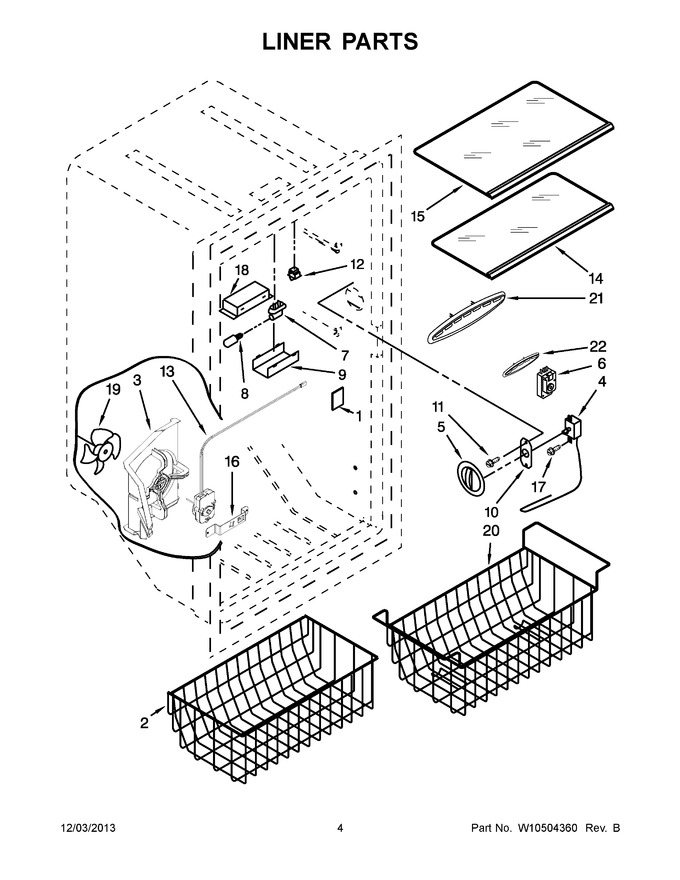

03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1-60123-001		Cover, Icemaker Hole				$ 80.09
2	W10508630		Basket, Wire				$ 97.20
3	4-82690-001		Shroud, Condenser Motor				$ 94.85
4	WPW10474750		Control, Temperature   (Replaces: W10474750)				$ 219.90
5	4-81294-004		Knob, Thermostat				$ 23.74
6	WP3-81329		Timer, Defrost   (Replaces: 3-81329)			Immediately	$ 199.14
7	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
8	40A15		Bulb, Light   (Replaces: 1-34291-002)			Immediately	$ 1.98
9	3-60197-001		Shield, Light				$ 40.60
10	1-81154		Plate, Thermostat				$ 15.00
11	WPW10068250		Screw   (Replaces: 1-80283-110)				$ 4.27
12	W11384469		Switch, Light   (Replaces: 2-32164-001)			Immediately	$ 39.09
13	4-82691-001		Motor, Condenser				$ 125.08
14	4-60209-002		Shelf, Middle		Appelez-nous	-
15	4-60207-002		Shelf, Top		Appelez-nous	-
16	3-82685-001		Bracket, Motor				$ 60.00
17	W11233072		Screw   (Replaces: 3-80732-014)			Immediately	$ 14.72
18	4-60185-002		Housing, Light Socket				$ 39.54
19	3-82692-001		Blade, Condenser Fan				$ 97.95
20	W10508628		Basket, Wire				$ 142.85
21	4-82556-002		Diffuser, Long Air		Appelez-nous	-
22	4-82573-002		Diffuser, Short Air		Appelez-nous	-
