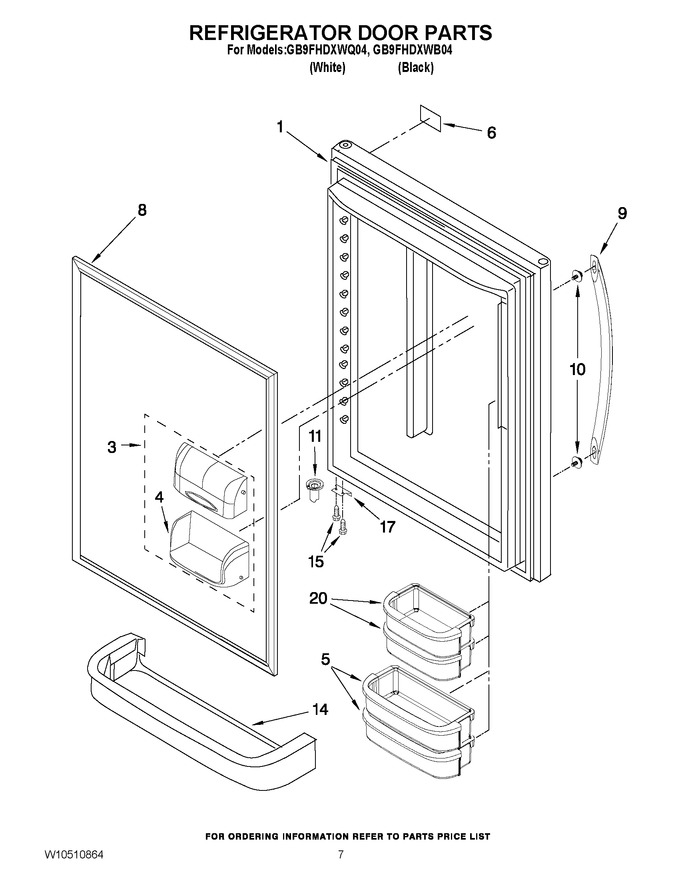

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109402WQ | Refrigerator Door (w/ Insulation) (white) (Replaces: 13109402W) |
|
$ 1,048.41 | |||||
| 1 | 13109402BQ | Refrigerator Door (w/ Insulation) (black) (Replaces: 13109402B) |
|
$ 886.96 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 73.55 | ||||
| 6 | WPW10391355 | Nameplate (white) (Replaces: W10391355) |
|
$ 72.05 | |||||
| 6 | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 8 | WPW10436245 | Gasket, Door Magnetic (black) (Replaces: W10436245) |
|
$ 345.10 | |||||
| 8 | WPW10443309 | Gasket, Door Magnetic (white) (Replaces: W10443309) |
|
Immediately | $ 347.85 | ||||
| 9 | W11351146 | Handle, Door (black) (Replaces: W10222985N) |
|
$ 180.08 | |||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10222984N) |
|
$ 195.68 | |||||
| 10 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 14 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 99.80 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 65.99 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 20 | WPW10351081 | Bucket (2) (small) (Replaces: W10351081) |
|
Immediately | $ 73.03 |
