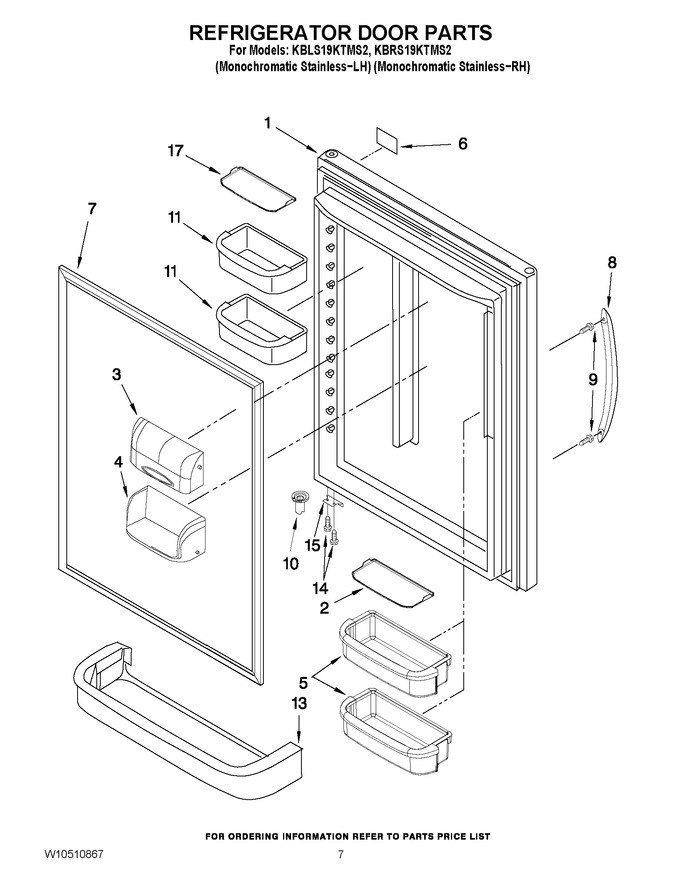

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107541SQ | Door, Refrigerator (lh) (Replaces: 13107541S) |
|
$ 1,075.94 | |||||
| 1 | 13107539SQ | Door, Refrigerator (rh) (Replaces: 13107539S) |
|
$ 1,117.77 | |||||
| 2 | WPW10450021 | Gripper, Medium (Replaces: W10450021) |
|
Immediately | $ 100.93 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | WPW10243391 | Nameplate (Replaces: W10243391) |
|
$ 58.31 | |||||
| 7 | W11676571 | Gasket, Door (apollo Grey) (Replaces: W10443310) |
|
$ 227.86 | |||||
| 8 | WPW10314517K | Handle, Door (mono Stainless) (Replaces: W10314517N) |
|
$ 243.37 | |||||
| 9 | WPW10661886 | Screw, Handle (Replaces: W10303465) |
|
Immediately | $ 12.88 | ||||
| 10 | WP12028505AP | Closure, Door (mono Stainless) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 11 | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 73.03 | ||||
| 13 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 14 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 15 | W11401472 | Stop, Door (Replaces: 10447114) |
|
Immediately | $ 23.56 | ||||
| 17 | W11408990 | Gripper, Small (Replaces: W10450001) |
|
Immediately | $ 85.90 |
