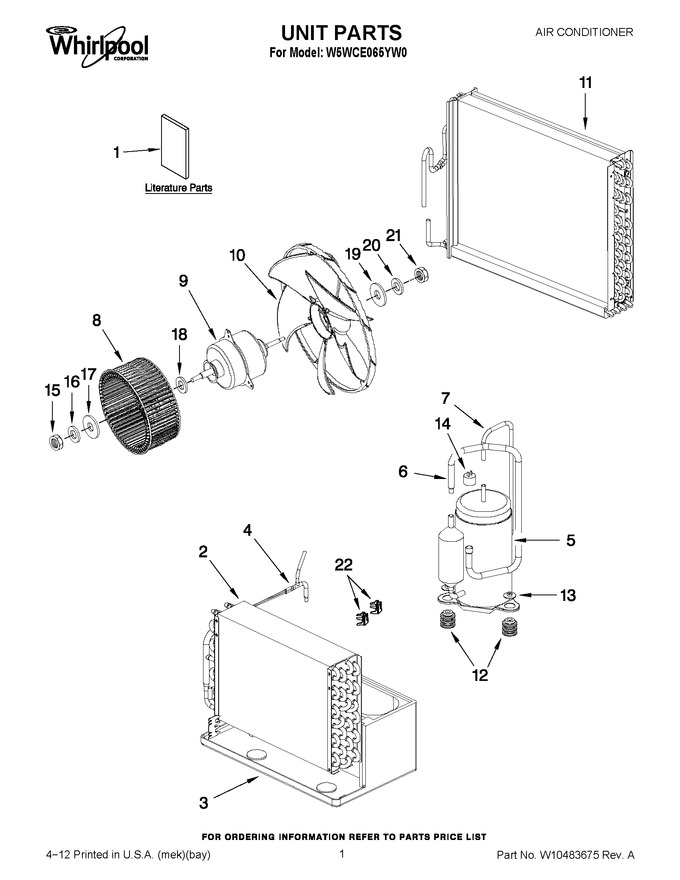

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10369331 | Use & Care Guide |
|
- | |||||
| 1 | W10498782 | Energy Guide |
|
- | |||||
| 1 | W10369332 | Wiring Diagram |
|
- | |||||
| 2 | W10388559 | Evaporator |
|
- | |||||
| 3 | W10361763 | Pan Drip |
|
- | |||||
| 4 | W10362210 | Tube-restr |
|
- | |||||
| 5 | WPW10362208 | Compressor (Replaces: W10362208) |
|
$ 385.53 | |||||
| 6 | W10361765 | Tube-inlet |
|
- | |||||
| 7 | W10361767 | Tube-dschg |
|
- | |||||
| 8 | W10361426 | Wheel Blower |
|
- | |||||
| 9 | W10360614 | Motor-fan |
|
- | |||||
| 10 | W10361428 | Blade-fan |
|
$ 103.74 | |||||
| 11 | W10361413 | Condenser |
|
- | |||||
| 12 | W10388563 | Gasket |
|
- | |||||
| 13 | W10388536 | Nut |
|
- | |||||
| 14 | W10484816 | Overload |
|
- | |||||
| 15 | W10388589 | Nut |
|
- | |||||
| 16 | W10388590 | Washer |
|
- | |||||
| 17 | W10388591 | Washer |
|
- | |||||
| 18 | W10388527 | Washer |
|
- | |||||
| 19 | W10388530 | Washer |
|
- | |||||
| 20 | W10388534 | Washer |
|
- | |||||
| 21 | 8215252 | Nut |
|
- | |||||
| 22 | 8209771 | Sensor Support |
|
- | |||||
| NI | N/P | Refrigerant Charge (14.00 Oz.) |
|
- |
