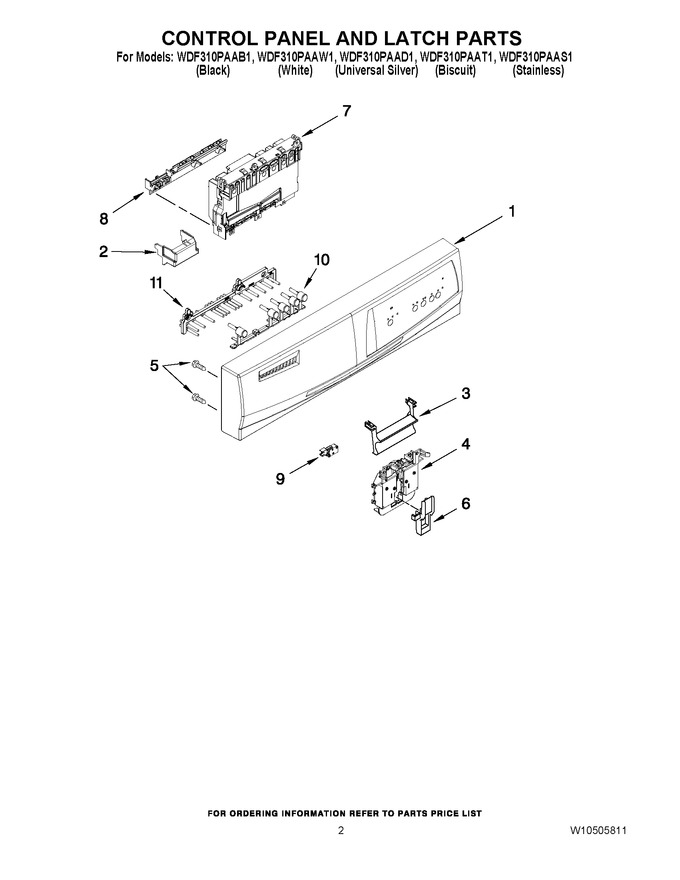

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10551671		Console Assembly (black)   (Replaces: W10447837)				$ 275.81
1	W10447838		Console Assembly (white)		Appelez-nous	-
1	W10447840		Console Assembly (biscuit)		Appelez-nous	-
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	8534986		Handle, Latch (biscuit)				$ 89.73
3	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 127.13
3	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 131.06
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
5	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 8.41
6	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
7	W10804120		Control, Electronic   (Replaces: W10375804)			Immediately	$ 119.82
8	WPW10372484		Brace, Connector   (Replaces: W10372484)				$ 23.37
9	WPW10274880		Door Switch   (Replaces: W10274880)			Immediately	$ 82.89
10	WPW10274840		Button Tree   (Replaces: W10274840)				$ 19.75
11	W10854407		Light Pipe   (Replaces: W10274836)				$ 90.33
