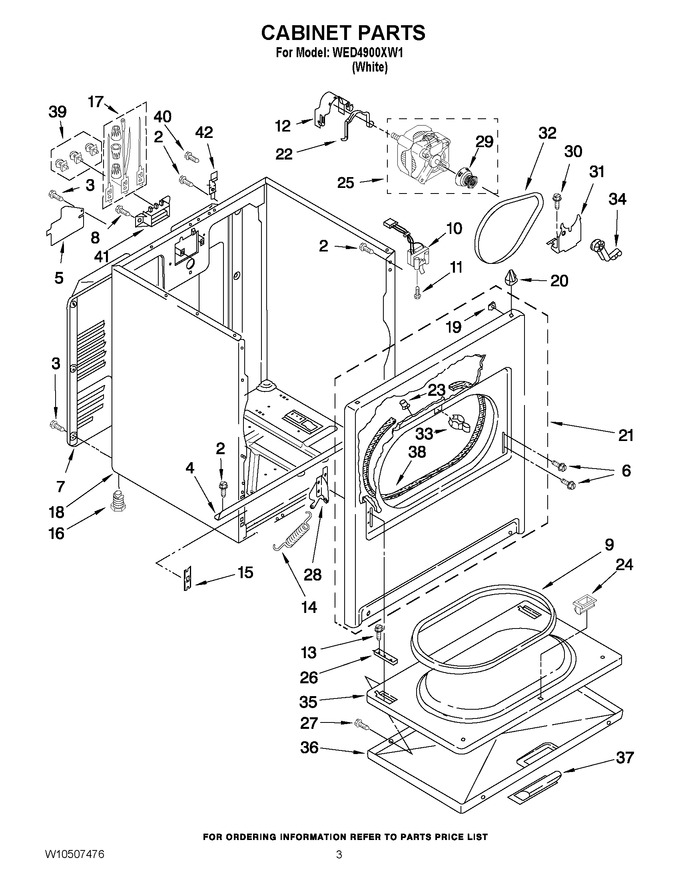

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
4	W10236073		Bracket, Cabinet		Appelez-nous	-
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 599.76
6	342043		Screw		Appelez-nous	-
7	280043		Panel, Rear   (Replaces: 3396805)				$ 341.30
8	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
9	W10906683		Seal, Door   (Replaces: 3390731)				$ 128.53
10	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
11	WP3395530		Screw   (Replaces: 697773)				$ 7.70
12	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
13	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
14	WPW10041960		Spring, Door   (Replaces: W10041960)			Immediately	$ 40.67
15	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
17	279318		Terminal, Tinned & Brass (3) (includes Illus. 39)			Immediately	$ 100.99
18	8533643		Cabinet (includes Illus. 4)   (Replaces: 8530603)				$ 399.26
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
20	WP8066092		Lock, Front Top   (Replaces: 8066092)			Immediately	$ 19.50
21	279443		Panel, Front   (Replaces: 695620)				$ 386.20
22	WPW10121316		Clamp, Motor   (Replaces: W10121316)			Immediately	$ 25.68
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 20.65
24	WP3389441		Catch, Door Assembly   (Replaces: 3389441)				$ 6.20
25	279827		Motor Assembly 60 Hz.   (Replaces: W10396029)			Immediately	$ 191.95
26	W11252547		Clip, Hinge   (Replaces: 337189)				$ 21.39
27	WP488627		Screw   (Replaces: 342055)				$ 7.57
28	WP8066057		Hinge, L.h.   (Replaces: 8066057)				$ 96.14
28	WP8066056		Hinge, R.h.   (Replaces: 8066056)			Immediately	$ 98.56
29	WP8066184		Pulley 60 Hz.   (Replaces: 8066184)			Immediately	$ 51.02
30	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
31	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
32	341241		Belt, Drive   (Replaces: W10131364)			Immediately	$ 18.15
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
34	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
35	WP695737		Door, Rear   (Replaces: 695737)				$ 254.56
36	WP3393549		Door, Front   (Replaces: 3393549)				$ 176.51
37	W10877261		Handle, Door   (Replaces: W10095180)				$ 86.45
38	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
39	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 47.37
40	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
41	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
42	WP8066217		Hinge, Top   (Replaces: 8066217)				$ 7.82
NI	49621		Foot-optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
