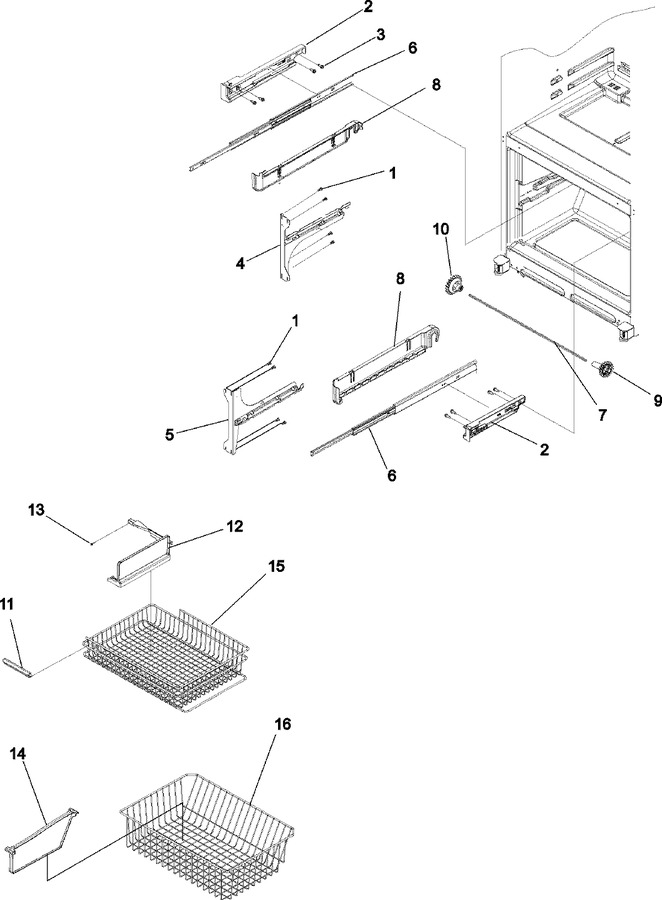

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.00
2	67004865		Adapter, Side (rt)	10	Appelez-nous	-
2	67004864		Adapter, Side (lt)	10	Appelez-nous	-
3	WP489474		Screw, Sm   (Replaces: 67004892)	10		Immediately	$ 7.97
4	67004012		Bracket, Drawer Slide (lt)	10	Appelez-nous	-
5	67004013		Bracket, Drawer Slide (rt)	10	Appelez-nous	-
6	67004065		Slide, Drawer	10	Appelez-nous	-
7	W11028221		Shaft, Rack   (Replaces: 67004017)	10			$ 31.66
8	WPW10280608		Cradle, Basket (lt)   (Replaces: 67004014)	10			$ 87.76
8	WPW10280613		Cradle, Basket (rt)   (Replaces: 67004015)	10			$ 87.76
9	12002497		Gear (lt)   (Replaces: 67004429)	10		Immediately	$ 22.51
10	12002497		Gear (rt)   (Replaces: 67004430)	10		Immediately	$ 22.51
11	10508506		Handle, Basket/shelf	10	Appelez-nous	-
12	67004127		Divider, Basket (upper)	10			$ 10.10
13	67001310		Screw	10	Appelez-nous	-
14	67004064		Divider, Basket (lwr)	10	Appelez-nous	-
15	67002765		Basket, Upper	10	Appelez-nous	-
16	WPW10503184		Basket, Frz. (lwr)   (Replaces: 67004079)	10			$ 238.17
