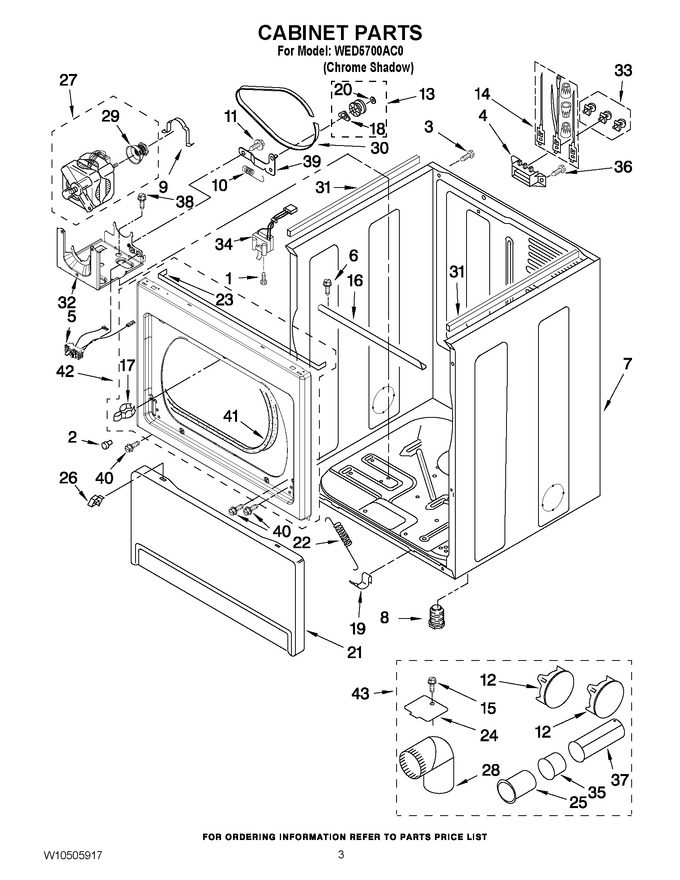

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 2 | 693152 | Bumper |
|
$ 11.51 | |||||
| 3 | WP90767 | Screw, Ground (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10411936) |
|
Immediately | $ 26.90 | ||||
| 6 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 7 | W10458797 | Cabinet |
|
- | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 75.58 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (includes Illus. 33) |
|
Immediately | $ 106.04 | ||||
| 15 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 8.28 | ||||
| 16 | W10236068 | Bracket, Cabinet |
|
$ 24.47 | |||||
| 17 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 18 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 9.68 | ||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 21 | WPW10459664 | Toe Panel (Replaces: W10459664) |
|
$ 210.71 | |||||
| 22 | WP3387565 | Spring, Door (Replaces: 3387565) |
|
$ 41.32 | |||||
| 23 | W10312811 | Foam Seal |
|
$ 67.73 | |||||
| 24 | WPW10354249 | Cover-plate (Replaces: W10354249) |
|
$ 9.41 | |||||
| 25 | WP8563747 | Exhaust Pipe (Replaces: 8563747) |
|
$ 95.95 | |||||
| 26 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 27 | 279787 | Motor, Assembly 60 Hz. (Replaces: W10396028) |
|
Immediately | $ 246.82 | ||||
| 28 | WPW10416072 | 4`` - 90° Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | W10336128 | Seal, Spill Guard |
|
$ 15.08 | |||||
| 32 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 34 | WP3406107 | Door Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 35 | WPW10331278 | Exhaust Pipe (short) (Replaces: W10331278) |
|
$ 82.90 | |||||
| 36 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 37 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 38 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 41 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 42 | WPW10459661 | Upper Front Panel (Replaces: W10459661) |
|
$ 264.10 | |||||
| NI | 49621 | Foot-optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) (Replaces: W10186596) |
|
Immediately | $ 85.28 |
