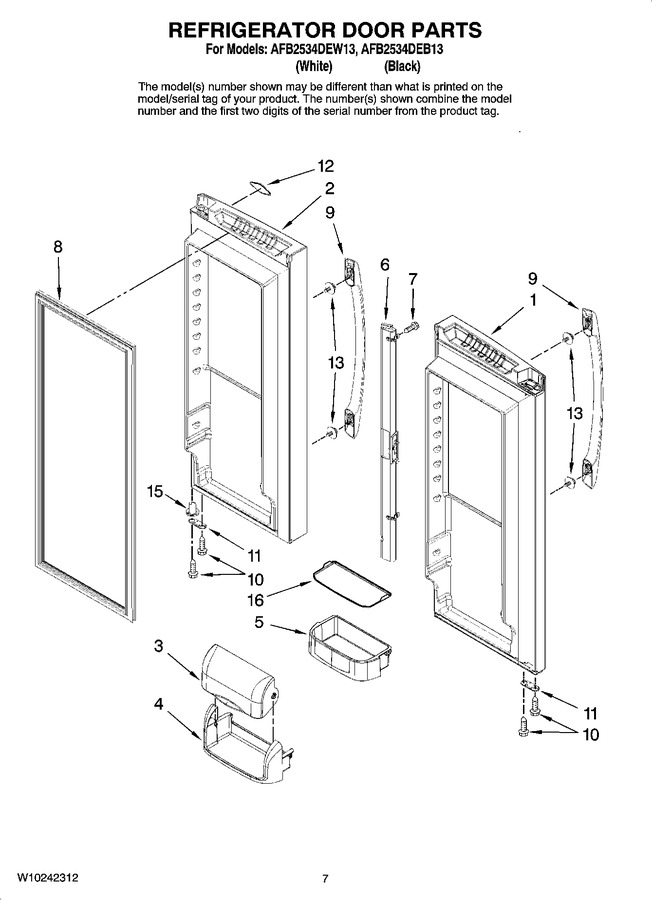

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024018BQ		Door, Left (black)		Appelez-nous	-
1	13024018WQ		Door, Left (white)		Appelez-nous	-
2	13024017WQ		Door, Right (white)		Appelez-nous	-
2	13024017BQ		Door, Right (black)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	12699207		Bucket, Door (gallon (2))		Appelez-nous	-
5	WPW10371193		Bucket, Door (medium (3))   (Replaces: 67003770)			Immediately	$ 74.80
6	WP12722803B		Mullion, Door (black)   (Replaces: 67003264)			Immediately	$ 206.80
6	WP12722803W		Mullion, Door (white)   (Replaces: 67003263)			Immediately	$ 261.21
7	W11311945		Screw   (Replaces: 67006786)				$ 14.72
8	W10436252		Gasket, Door (black)   (Replaces: W10131754)			Immediately	$ 362.28
8	W10830189		Gasket, Door (white)   (Replaces: W10137006)			Immediately	$ 228.91
9	W10119665		Handle, Door (black - Rh)				$ 75.66
9	WPW10119668		Handle, Door (black - Lh)   (Replaces: W10119668)				$ 189.04
9	W10119663		Handle, Door (white - Rh)				$ 75.72
9	W10119666		Handle, Door (white - Lh)				$ 104.36
10	WP98165		Screw   (Replaces: 67006287)				$ 8.57
11	12968202W		Stop, Door (white)				$ 69.29
11	W11708403		Stop, Door (black)   (Replaces: 67007011)			Immediately	$ 14.75
12	Y12528501		Nameplate			Immediately	$ 62.74
13	WP12992902		Mount, Handle   (Replaces: 12992902)				$ 11.91
15	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
15	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 8.15
16	67005453		Grippers (gallon)		Appelez-nous	-
16	67003212		Grippers (medium)		Appelez-nous	-
