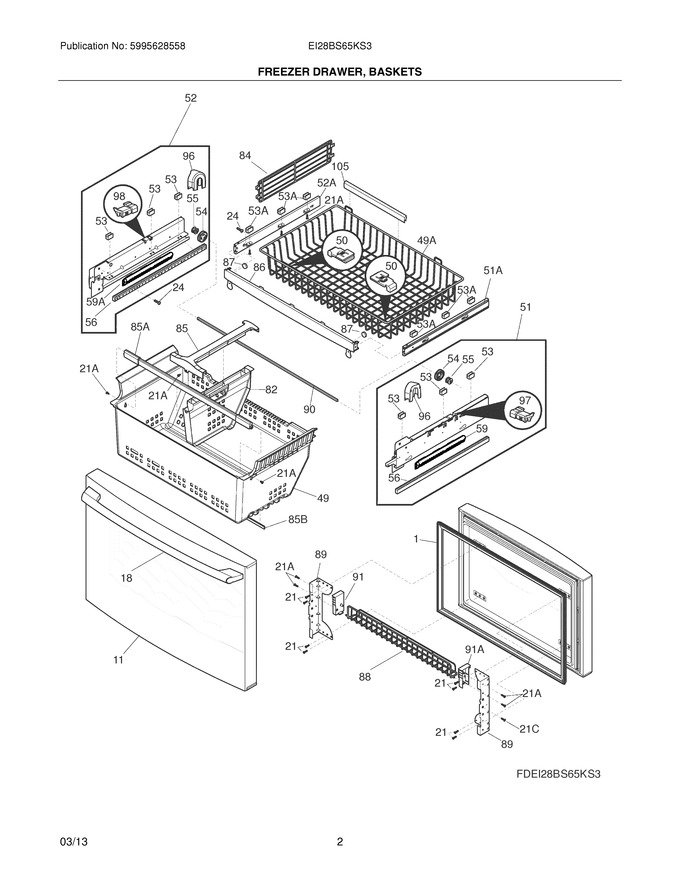

03 - Freezer Drawer, Baskets


05 - Fresh Food Doors


07 - Cabinet


09 - Shelves


11 - Cooling System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Fresh Food Ice Maker


19 - Freezer Ice Maker


20 - Wiring Diagram


21 - Wiring Diagram


22 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241987922		Drawer,stainless ,freezer				$ 713.58
18	241881310		Handle-frzr Drawer,stainless				$ 301.61
21	241695904		Screw				$ 16.01
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 21.37
49	5303918736		Basket-frzr,plastic ,lower   (Replaces: 242130701)				$ 246.91
50	242219501		Clip-basket,pull Side		Appelez-nous	-
51	241883608		Slide Assembly,basket Lower ,rh ,freezer Drawer				$ 272.16
52	241883708		Slide Assembly,basket Lower ,lh ,freezer Drawer				$ 262.34
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 38.59
55	241770301		Pinion-idler				$ 24.41
56	242158001		Rack-drawer Travel				$ 43.89
59	5304474655		Closure,drawer   (Replaces: 241979702)				$ 78.75
82	5304503705		Divider,basket   (Replaces: 242131301)				$ 131.51
84	241780904		Divider,basket				$ 79.21
85	242130901		Divider,basket ,lower				$ 101.96
86	5304507340		Trim,drawer ,stabilizer   (Replaces: 241807605)			Immediately	$ 50.61
87	241812202		Magnet,freezer Drawer				$ 80.33
88	241824008		Rack-non-tilt Out,door				$ 137.35
89	241972302		Bracket-freezer Drawer				$ 121.34
90	241770705		Bar,timing   (Replaces: 241770702)				$ 56.29
91	241824102		Cap-door Rack				$ 19.38
96	241973501		Cover,pinion ,white				$ 63.63
97	241926401		Actuator,rh ,white ,light				$ 17.54
98	241926402		Actuator,lh ,white ,light				$ 16.55
105	242116801		Trim-basket				$ 19.69
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 19.01
21C	241899703		Screw,truss Head ,no.10-32 X 1/4 ,zinc				$ 17.69
49A	241780810		Basket-frzr,upper				$ 238.67
51A	5304491063		Slide Assembly,basket ,rh ,freezer Drawer   (Replaces: 241894206)				$ 172.46
52A	241894207		Slide Assembly,basket ,lh ,freezer Drawer		Appelez-nous	-
53A	5303918801		Retainer-basket   (Replaces: 242216301)				$ 14.32
59A	241979701		Closure,drawer		Appelez-nous	-
85A	242139301		Support-beam,divider ,lower Basket				$ 81.90
85B	241872203		Support-beam,lower Basket				$ 59.83
91A	241824101		Cap,door Rack ,white				$ 19.38
F1	5304537408		Gasket-frzr Drawer,gray ,magnetic   (Replaces: 241778308)			Immediately	$ 95.87
F21C	5304497384		Plate,tapping   (Replaces: 242147601)				$ 17.33
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
NI	242139201		Spring-compression,divider ,lower Basket				$ 21.91
NI	241979601		Bumper,rubber ,white				$ 25.20
NI	242039702		Screw,shoulder ,no.10-16 ,(2)				$ 4.73
NI	241701902		Screwdriver,hex ,3/32`` ,ball Driver				$ 22.05
NI	242011101		Pin-lock				$ 16.85
NI	241601002		Wrench,allen		Appelez-nous	-
