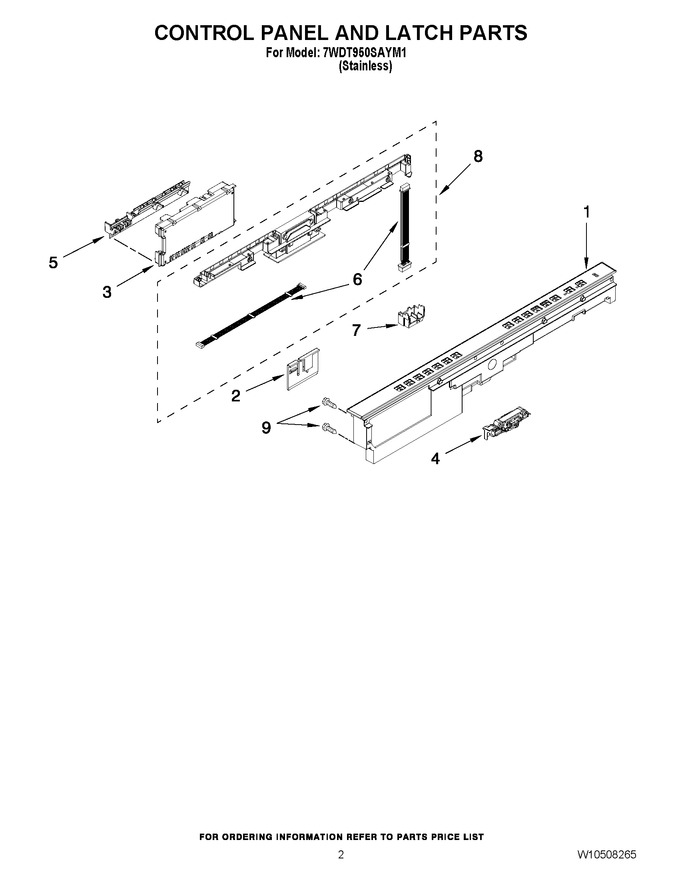

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10380196 | Console Assembly (includes Active Overlay & Insert) |
|
- | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10482988 | Control, Electronic (includes Items 5 & 7) (Replaces: W10461371) |
|
$ 283.77 | |||||
| 4 | W10619006 | Latch Assembly (Replaces: W10380262) |
|
Immediately | $ 39.09 | ||||
| 5 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 6 | W10347251 | Wire, Jumper (left Side) |
|
$ 11.62 | |||||
| 6 | W10300781 | Wire, Jumper (right Side) |
|
$ 33.20 | |||||
| 7 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 8 | WPW10629161 | Housing, User Interface (Replaces: W10350262) |
|
$ 372.17 | |||||
| 9 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 |
