SELECT A DIAGRAM

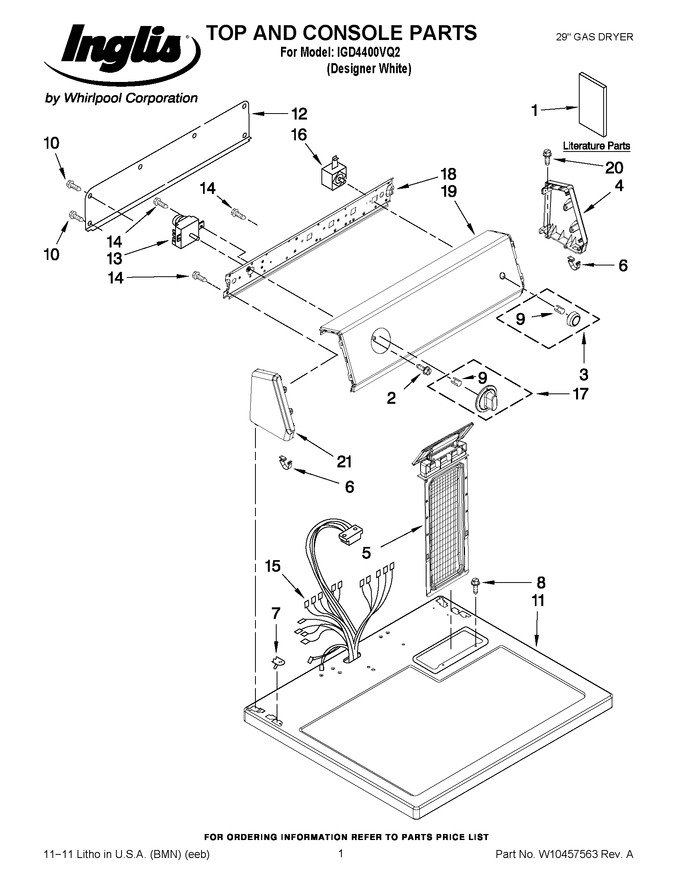

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10336852 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10115228 | Instructions, Installation |
|
- | |||||
| 1 | W10287575 | Use & Care Guide |
|
- | |||||
| 1 | W10185979 | Wiring Diagram |
|
- | |||||
| 2 | 3400859 | Screw, 8-18 X 7/32 (Replaces: 8533951) |
|
$ 13.88 | |||||
| 3 | 8538959 | Knob, Push-to-start |
|
$ 25.38 | |||||
| 4 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 87.57 | |||||
| 5 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 54.63 | ||||
| 6 | WP688805 | Spring Clip, Knob (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 7 | WP357213 | Nut, Push In (Replaces: 357213) |
|
$ 7.76 | |||||
| 8 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 9 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 10 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | 8557930 | Top Temperature |
|
- | |||||
| 12 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 13 | WPW10185971 | Timer (Replaces: W10185971) |
|
$ 318.41 | |||||
| 14 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 15 | W10186074 | Harness, Wiring |
|
- | |||||
| 16 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 17 | WP8557455 | Timer Knob Assembly (Replaces: 8538953) |
|
$ 59.61 | |||||
| 18 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 19 | W10207807 | Panel, Control |
|
$ 172.85 | |||||
| 20 | WP388326 | Screw (Replaces: 388326) |
|
$ 9.29 | |||||
| 21 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 87.57 |
