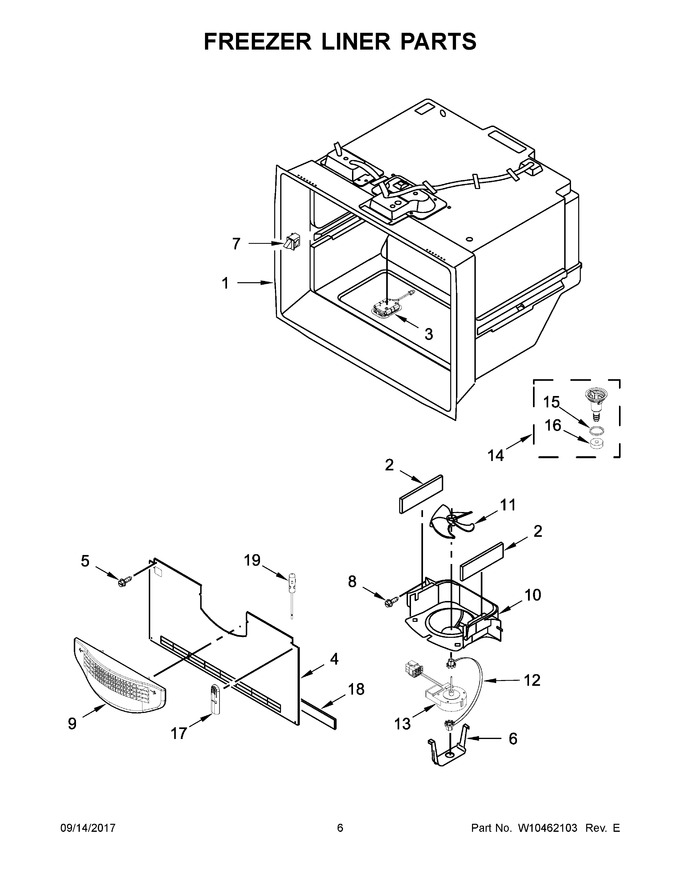

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 8.06 | ||||
| 3 | W11683241 | Assembly, Led Light Module (Replaces: W10637153) |
|
Immediately | $ 271.97 | ||||
| 4 | W11690163 | Cover, Evaporator (Replaces: W10513424) |
|
$ 219.08 | |||||
| 5 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 6 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 12.24 | ||||
| 7 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 9 | W10871842 | Grille, Air (freezer) (Replaces: W10496613) |
|
$ 15.58 | |||||
| 10 | WPW10363507 | Shroud, Evaporator Fan (Replaces: W10363507) |
|
$ 86.36 | |||||
| 11 | WP67006337 | Blade, Fan (Replaces: 12986101) |
|
Immediately | $ 90.45 | ||||
| 12 | W11676465 | Grommet, Fan Motor (Replaces: 12951101) |
|
Immediately | $ 15.56 | ||||
| 13 | W11452196 | Motor, Evaporator (includes Harness, Thermistor, And Defrost Thermostat) (Replaces: W10514110) |
|
Immediately | $ 227.28 | ||||
| 14 | W10503218 | Assembly, Drain Funnel |
|
Immediately | $ 18.64 | ||||
| 15 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 16 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.78 | |||||
| 17 | W11661208 | Cover, Thermistor (Replaces: W10405166) |
|
$ 23.28 | |||||
| 18 | W10668165 | Gasket, Dual Evaporator (Replaces: W10531268) |
|
- | |||||
| 19 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 |
