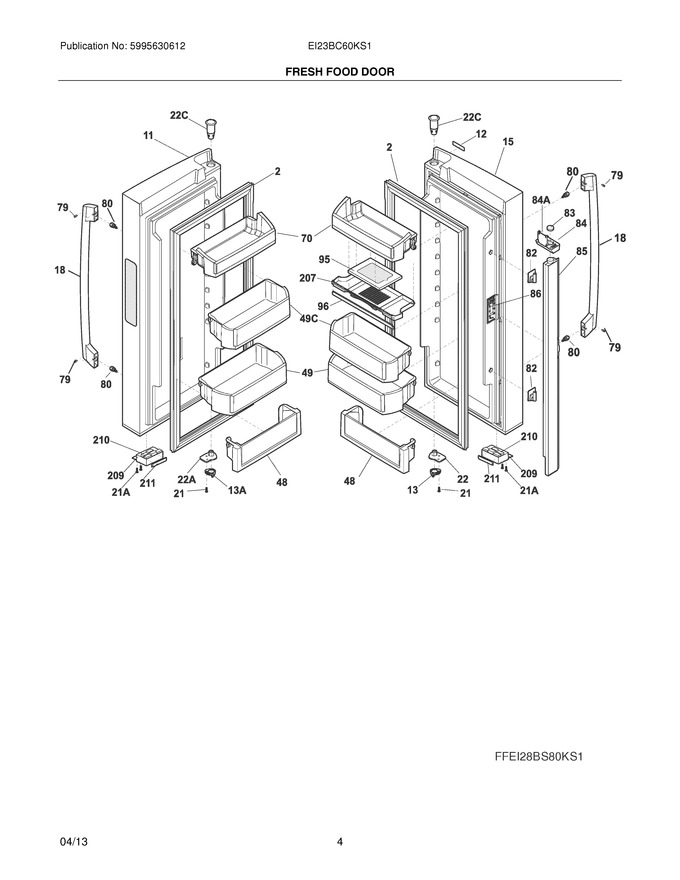

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241988092 | Door-refr,stainless ,lh |
|
$ 435.38 | |||||
| 12 | 241873301 | Nameplate,electrolux ,stainless |
|
$ 12.39 | |||||
| 13 | 241868401 | Door Stop,refrig Rh ,plated |
|
$ 20.48 | |||||
| 15 | 241988091 | Door-refr,stainless ,rh |
|
$ 448.14 | |||||
| 18 | 241881309 | Handle-door,stainless |
|
$ 285.13 | |||||
| 21 | 242017501 | Screw,10-32 X 0.750 |
|
$ 17.33 | |||||
| 22 | 242075601 | Cam,upper Hinge ,rh |
|
$ 23.31 | |||||
| 48 | 241804303 | Bin-door,can |
|
$ 103.75 | |||||
| 49 | 241804006 | Bin-door,gallon |
|
$ 122.90 | |||||
| 70 | 242131801 | Bin-door,1/2 Gallon |
|
$ 96.69 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 241779401 | Hinge-mullion,upper/lower ,flipper |
|
Immediately | $ 24.43 | ||||
| 83 | 241812201 | Magnet,door |
|
$ 73.24 | |||||
| 84 | 242190401 | Guide-mullion,magnet Cover ,flipper |
|
$ 16.70 | |||||
| 85 | 241778811 | Flipper Mullion Assembly,w/heater |
|
Immediately | $ 296.89 | ||||
| 86 | 241779802 | Hinge-mullion,center ,flipper (Replaces: 241779801) |
|
Immediately | $ 45.83 | ||||
| 95 | EAFCBF | Filter-air (Replaces: 242047801) |
|
Immediately | $ 30.71 | ||||
| 96 | 242048001 | Trim-door Air Filter,w/graphics |
|
$ 48.88 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 89.32 | |||||
| 209 | 242291001 | Housing-magnet,white (Replaces: 242021001) |
|
$ 22.75 | |||||
| 210 | 241779101 | Magnet,door (Replaces: 241779103) |
|
Immediately | $ 34.65 | ||||
| 211 | 241979601 | Bumper,rubber ,white |
|
$ 25.20 | |||||
| 13A | 241868402 | Door Stop,refr Lh ,plated |
|
$ 20.48 | |||||
| 21A | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| 22A | 242075602 | Cam,upper Hinge ,lh |
|
$ 27.80 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 21.26 | ||||
| 49C | 241896103 | Bin-door,1/2 Gallon |
|
$ 108.52 | |||||
| 84A | 5303918644 | Cover-mullion,magnet Cover (Replaces: 242190501) |
|
$ 46.04 | |||||
| F2 | 241778315 | Gasket-refr Door,gray ,magnetic (Replaces: 241778307) |
|
Immediately | $ 99.87 | ||||
| FNI | 241788402 | Harness-wiring,flipper Mullion |
|
- | |||||
| FNI | 241891104 | Light-led |
|
- | |||||
| FNI | 242045401 | Harness-wiring,door |
|
$ 51.50 | |||||
| NI | 240451503 | Screw (Replaces: 242064001) |
|
$ 4.21 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 242068601 | Bumper,flipper Mullion |
|
$ 16.01 | |||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 22.05 |
