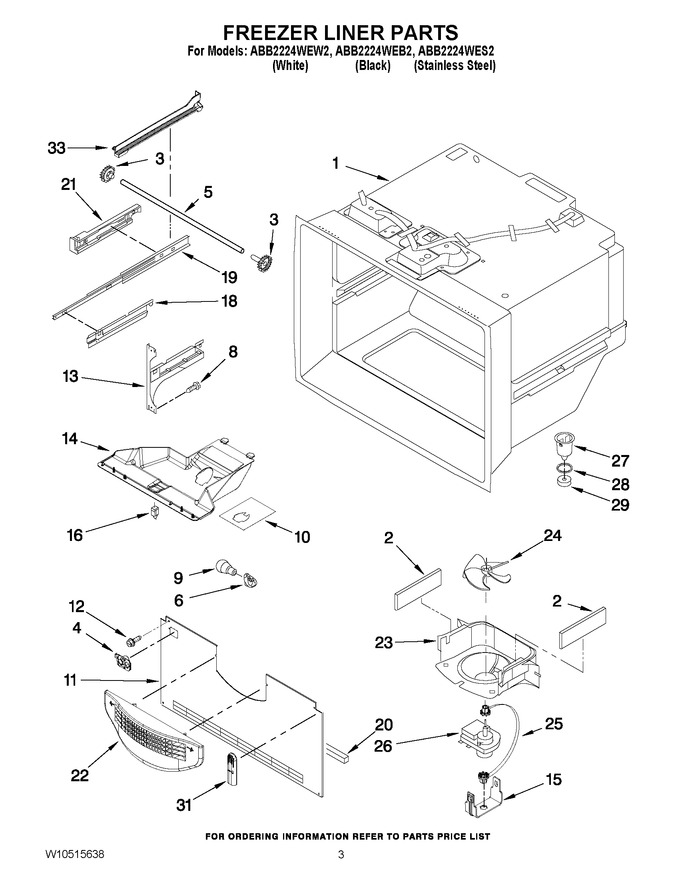

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | 12002497 | Gear-( L & R ) |
|
Immediately | $ 22.51 | ||||
| 4 | W11448709 | Guide-fill Tube (Replaces: 12932103) |
|
$ 24.64 | |||||
| 5 | W11715937 | Shaft (Replaces: 12812902WD) |
|
$ 65.42 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 9 | 4396822 | Bulb-light (Replaces: W10311527) |
|
Immediately | $ 12.93 | ||||
| 10 | W11469652 | Foil, Housing (Replaces: W10277466) |
|
$ 22.18 | |||||
| 11 | W10308415 | Cover, Evaporator |
|
$ 285.46 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 13 | WPW10330995 | Bracket, Door (right) (Replaces: W10330995) |
|
Immediately | $ 324.39 | ||||
| 13 | WPW10330994 | Bracket, Door (left) (Replaces: W10330994) |
|
Immediately | $ 161.64 | ||||
| 14 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 128.00 | |||||
| 15 | 13058002 | Clip, Evaporator |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 18 | WPW10280608 | Cradle-basket (left) (Replaces: W10280608) |
|
$ 87.76 | |||||
| 18 | WPW10280613 | Cradle-basket (right) (Replaces: W10280613) |
|
$ 87.76 | |||||
| 19 | W11658402 | Slide, Drawer (2) (Replaces: W10488000) |
|
Immediately | $ 127.51 | ||||
| 20 | W11451451 | Gasket, Bottom (Replaces: A3189397) |
|
$ 12.41 | |||||
| 21 | WPW10284685 | Adapter, Slide (right) (Replaces: W10284685) |
|
$ 40.04 | |||||
| 21 | WPW10284684 | Adapter, Slide (left) (Replaces: W10284684) |
|
Immediately | $ 39.77 | ||||
| 22 | WPW10175909 | Grille, Fz (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet |
|
$ 48.38 | |||||
| 26 | WPW10128551 | Motor, Evap (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Funnel, Drier (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 33 | W11489994 | Rack-side (right) (Replaces: W10284695) |
|
$ 22.34 | |||||
| 33 | W11489993 | Rack-side (left) (Replaces: W10284694) |
|
$ 22.34 |
