View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

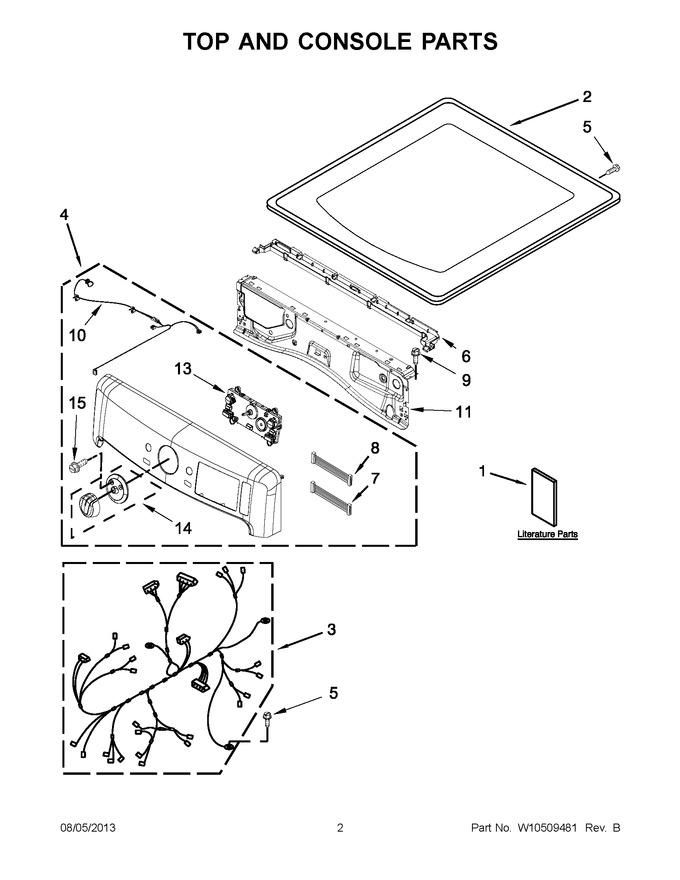

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10312952 | Use & Care Guide |
|
- | |||||
| 1 | W10420006 | Tech Sheet |
|
- | |||||
| 1 | W10423115 | Installation Instructions |
|
- | |||||
| 1 | W10297011 | Wiring Diagram |
|
- | |||||
| 2 | W10301057 | Top (cosmetallic) |
|
$ 139.14 | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10441588 | Harness, Main |
|
$ 102.82 | |||||
| 4 | WPW10464661 | Panel, Console (white) (Replaces: W10464661) |
|
$ 593.41 | |||||
| 4 | WPW10464662 | Panel, Console (cosmetallic) (Replaces: W10464662) |
|
$ 685.57 | |||||
| 5 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10653575 | Water Channel (Replaces: W10259210) |
|
$ 90.94 | |||||
| 7 | W10309986 | Harness, Jumper |
|
$ 16.85 | |||||
| 8 | W10309987 | Harness, Jumper |
|
$ 13.08 | |||||
| 9 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 10 | W10450060 | Cable, User Interface |
|
- | |||||
| 11 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 13 | W10267956 | Ui, Center (includes Knob And Inlay) |
|
- | |||||
| 14 | W10514146 | Kit, Knob And Inlay |
|
Immediately | $ 96.76 | ||||
| 15 | WP8533993 | Screw (Replaces: W10146359) |
|
$ 11.21 |
