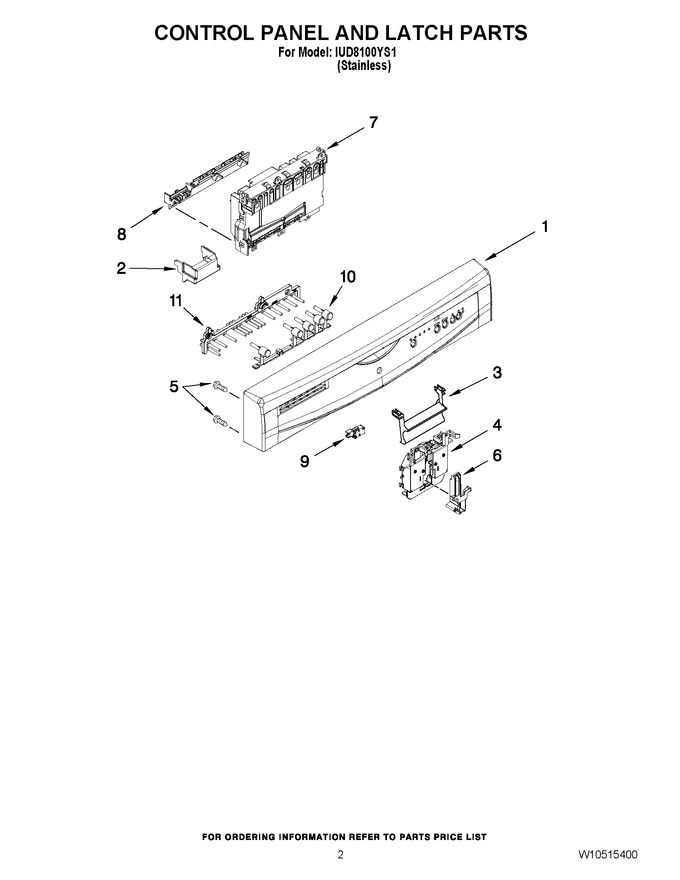

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10447854 | Console Assembly |
|
- | |||||
| 2 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 3 | WP8269323 | Handle, Latch (Replaces: 8269323) |
|
$ 132.27 | |||||
| 4 | WPW10274884 | Bolt, Latch (Replaces: W10274884) |
|
Immediately | $ 86.34 | ||||
| 5 | WPW10348413 | Screw (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 6 | WP8524471 | Actuator, Latch (Replaces: 8524471) |
|
Immediately | $ 101.28 | ||||
| 7 | W10906419 | Control, Electronic (Replaces: W10375806) |
|
$ 314.94 | |||||
| 8 | WPW10372484 | Brace, Connector (Replaces: W10372484) |
|
$ 23.37 | |||||
| 9 | WPW10274880 | Door Switch (Replaces: W10274880) |
|
Immediately | $ 82.89 | ||||
| 10 | W10274843 | Button Tree |
|
- | |||||
| 11 | W10274837 | Light Pipe |
|
$ 21.08 |
