SELECT A DIAGRAM

01 - Control Panel Parts


02 - Door Parts

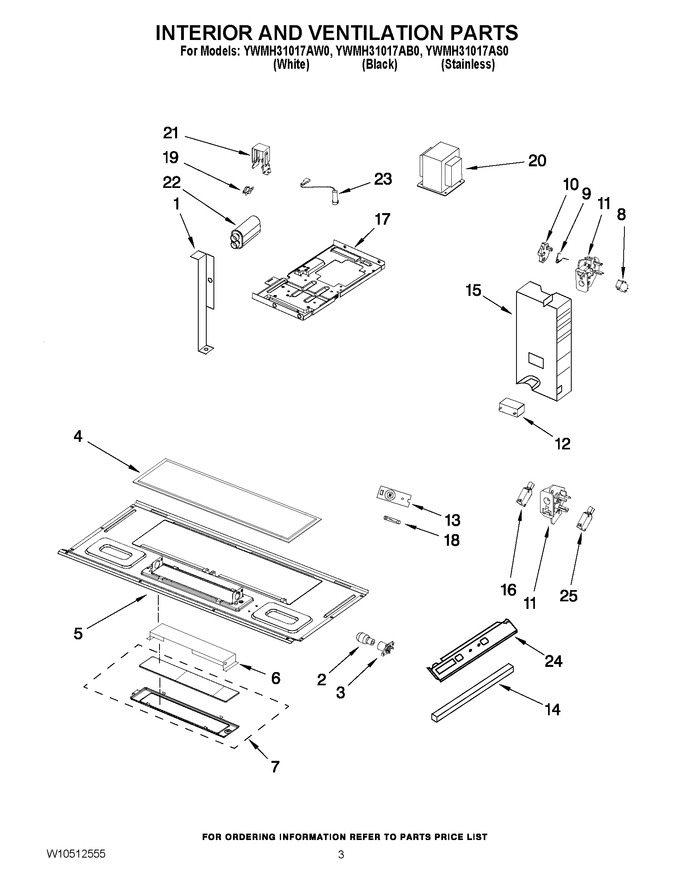

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313275		Bracket, Top				$ 35.62
2	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 7.71
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10245196		Plate, Bottom				$ 257.07
6	W10250586		Reflector, Lamp				$ 130.39
7	W10240330		Assembly, Glass With Holder				$ 7.55
8	W10269460		Switch, Micro Szm-v16-fc-63			Immediately	$ 45.95
9	W10156812		Spring, Interlock			Immediately	$ 12.14
10	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
11	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
11	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
12	W11405832		Capacitor, 125 V   (Replaces: W10210855)				$ 28.60
13	W10163422		Thermistor (pcba)				$ 179.70
14	W11523261		Cushion, Ntc   (Replaces: W10313276)		Appelez-nous	-
15	W10364230		Lower Airguide		Appelez-nous	-
16	W10727360		Switch, Micro Szm-v16-fc-61   (Replaces: W10269457)			Immediately	$ 5.82
17	W10269456		Plate, Chassis				$ 82.02
18	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
19	W10269232		Thermostat, Cavity				$ 74.28
20	W10349882		Transformer, H.v.				$ 240.56
21	W10532063		Bracket, Capacitor   (Replaces: W10156817)				$ 29.69
22	8206562		Capacitor, H.v.			Immediately	$ 120.92
23	W11817793		Diode, H.v.   (Replaces: W10492278)		Appelez-nous	-
24	W10476124		Support, Ntc		Appelez-nous	-
25	W10269458		Switch, Micro Szm-v16-fc-62			Immediately	$ 40.11

    View Diagram in Separate Window       Print Part List
