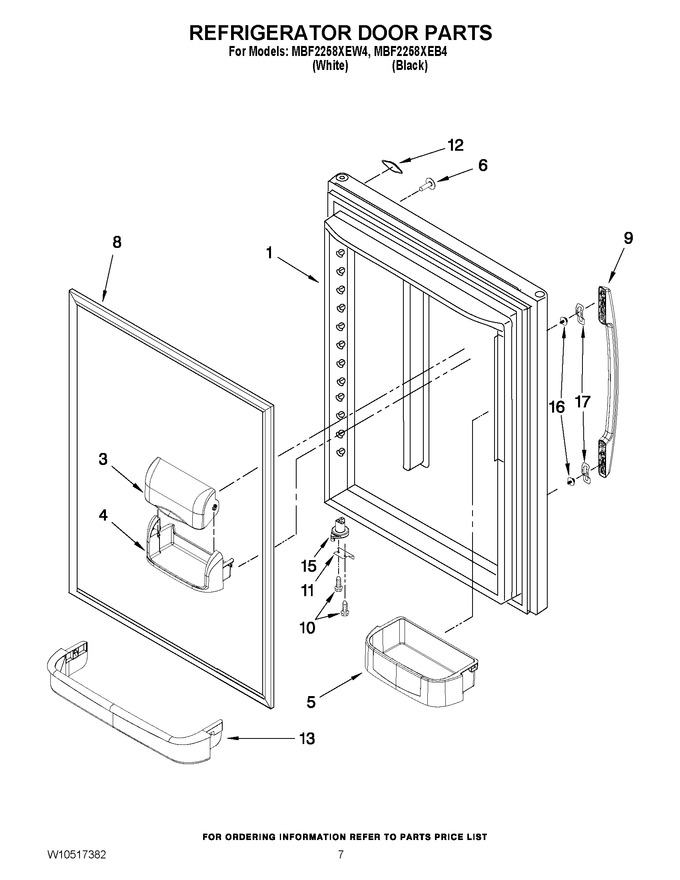

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13109401BQ		Door, Refrigerator (black)   (Replaces: 13109401B)				$ 1,073.65
1	13109401WQ		Door, Refrigerator (white)   (Replaces: 13109401W)				$ 1,073.65
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	67004040		Bucket, Medium (3)   (Replaces: 12801902)				$ 95.99
6	WP12246608		Plug, Button (black)   (Replaces: 12246608)			Immediately	$ 8.15
6	WP67001130		Plug, Button (white)   (Replaces: 12246607)			Immediately	$ 5.98
8	WPW10436248		Gasket, Door (black)   (Replaces: W10436248)				$ 286.97
8	W10443313		Gasket, Door (white)				$ 361.01
9	WPW10252284A		Handle, Door (white)   (Replaces: W10252284N)				$ 76.28
9	W10252285N		Handle, Door (black)		Appelez-nous	-
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.75
11	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 69.29
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
13	67001019		Retainer, Ref Door   (Replaces: 12557905)			Immediately	$ 112.90
15	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15
15	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
16	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
17	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 36.55
