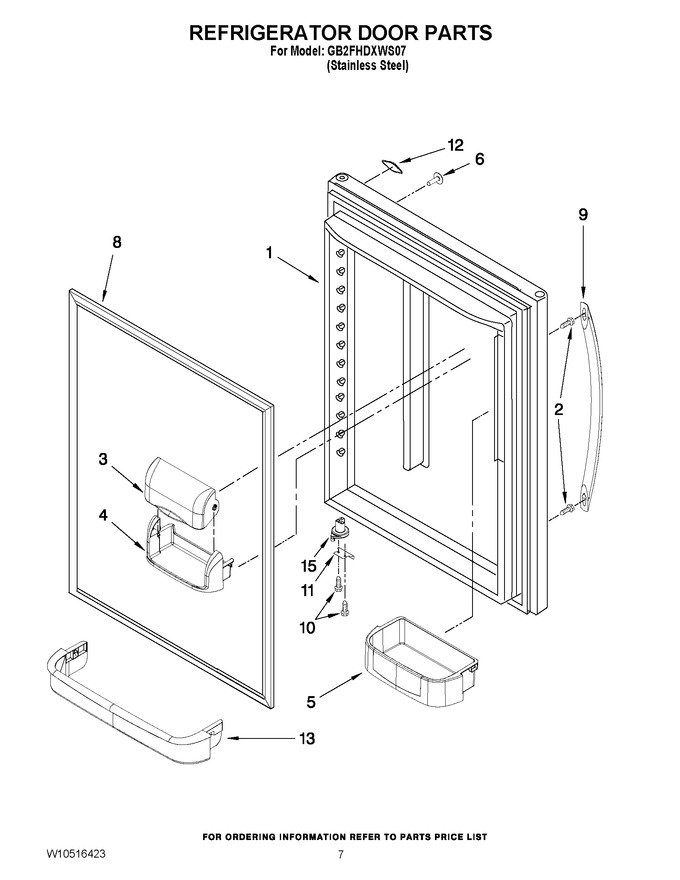

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107549SQ | Door, Refrigerator (stainless Steel) (Replaces: 13107549S) |
|
$ 930.06 | |||||
| 2 | WPW10288153 | Screw, Handle (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | WPW10324005 | Bucket, Medium (Replaces: W10324005) |
|
$ 69.98 | |||||
| 6 | WP12246610 | Plug-button (Replaces: 12246610) |
|
Immediately | $ 7.34 | ||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10436248) |
|
$ 301.64 | |||||
| 9 | W11351147 | Handle, Door (stainless Steel) (Replaces: W10223019N) |
|
$ 178.40 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 13.28 | ||||
| 12 | WPW10393265 | Nameplate (Replaces: W10393265) |
|
Immediately | $ 70.71 | ||||
| 13 | 67001019 | Retainer, Ref Door (Replaces: 12557905) |
|
Immediately | $ 101.61 | ||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 81.29 |
