Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13109403W Door, Refrigerator (white) Appelez-nous -
2 WP8281146 Screw-handle (2)   (Replaces: 8281146) Special Order $ 7.36

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 74.40

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 67001141 Bucket, Door (small (2))   (Replaces: 12557202) In-Stock Immediately $ 71.02

5 WP67001021 Bucket, Door (medium)   (Replaces: 12557204V) Special Order $ 76.46

6 WP67001130 Plug, Handle Hole (white)   (Replaces: 12246607) In-Stock Immediately $ 7.39

8 WPW10443309 Gasket, Door (white)   (Replaces: W10443309) In-Stock Immediately $ 328.72

9 12691001W Handle, Door (white) Special Order $ 91.04

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

11 12968202W Stop, Door (white)   (Replaces: 10447111) Special Order $ 62.36

12 2263431 Nameplate Special Order $ 70.27

13 67001139 Retainer, Ref Door   (Replaces: 12557904) In-Stock Immediately $ 94.31

15 12691202W Trim,handle (white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

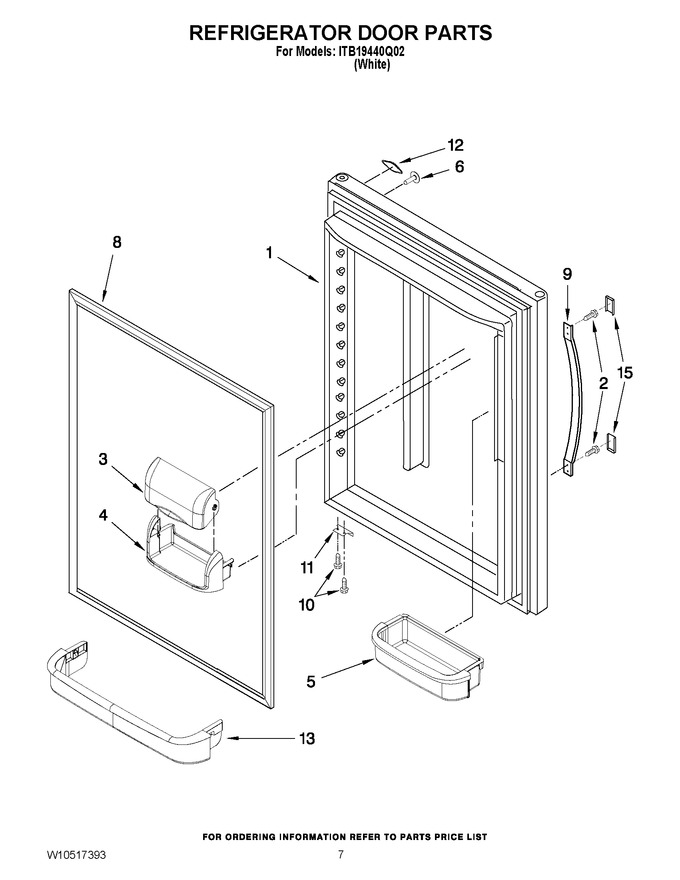

Diagram for ITB19440Q02
