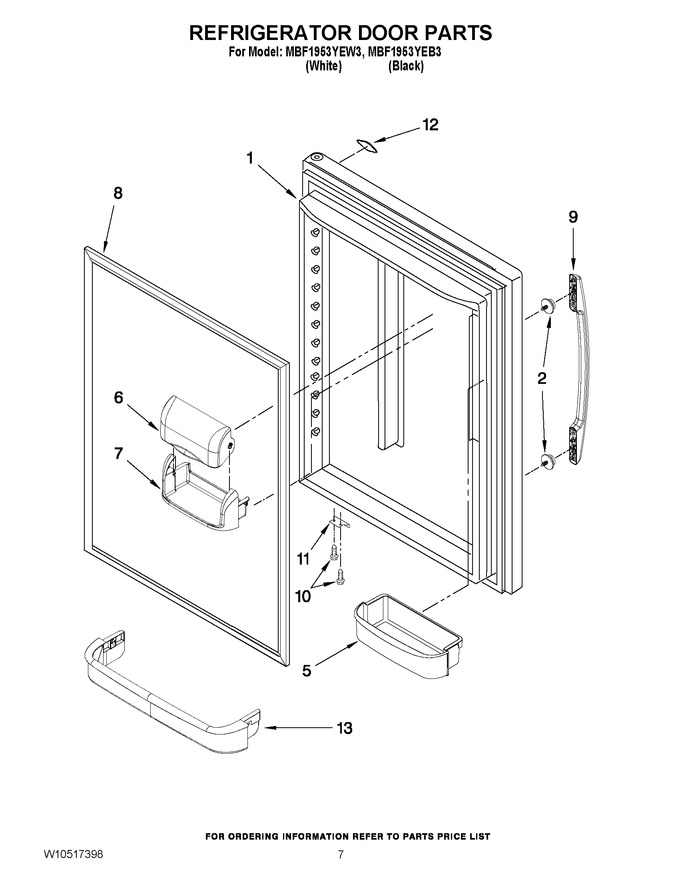

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13109403B		Door, Refrigerator (black)		Appelez-nous	-
1	13109403W		Door, Refrigerator (white)		Appelez-nous	-
2	WPW10288153		Screw, Handle   (Replaces: W10288153)			Immediately	$ 9.65
5	WP67004041		Bucket, Door (small (2))   (Replaces: 12801901V)				$ 89.01
5	67004040		Bucket, Door (medium)   (Replaces: 12801902V)				$ 95.99
6	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
7	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
8	WPW10436245		Gasket, Door (black)   (Replaces: W10436245)				$ 362.36
8	WPW10443309		Gasket, Door (white)   (Replaces: W10443309)			Immediately	$ 365.24
9	WPW10252284A		Handle, Door (white)   (Replaces: W10252284N)				$ 76.28
9	W10252285N		Handle, Door (black)		Appelez-nous	-
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.75
11	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 69.29
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
13	67001139		Retainer, Ref Door   (Replaces: 12557904)			Immediately	$ 104.79
