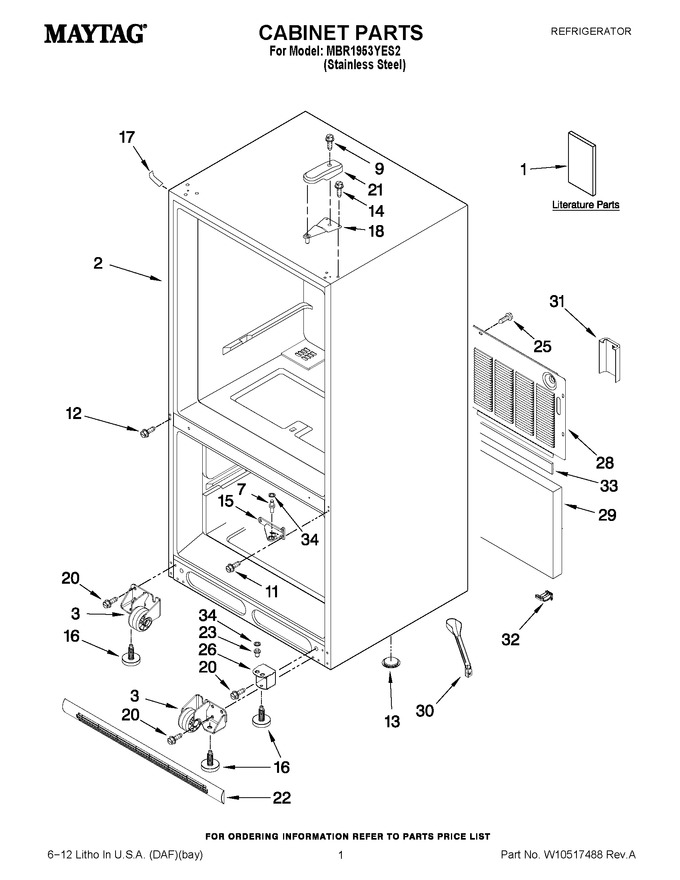

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10366206SP Owners Manual Appelez-nous -
1 W10475386 Tech Sheet Appelez-nous -
1 W10450362 Energy Guide Appelez-nous -
2 N/P Cabinet (not A Servicable Part) Appelez-nous -
3 W11820445 Assembly, Roller (right)   (Replaces: W10275849) In-Stock Immediately $ 37.35

3 W11820444 Assembly, Roller (left)   (Replaces: W10275850) In-Stock Immediately $ 37.35

7 WP67006744 Pin, Center Hinge   (Replaces: 10351005) Special Order $ 8.68

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.55

11 W11573362 Screw (3)   (Replaces: W10339086) Special Order $ 14.72

12 WP489349 Screw   (Replaces: 12990101) In-Stock Immediately $ 8.43

13 A3076901 Plug, Button Special Order $ 5.70

14 WP489349 Screw (3)   (Replaces: 12992403) In-Stock Immediately $ 8.43

15 WP12607104ED Hinge, Center (black)   (Replaces: 12607104ED) Special Order $ 167.35

16 WPW10141622 Foot Brake (2)   (Replaces: W10141622) In-Stock Immediately $ 8.24

17 67003485 Cover, Corner (black)   (Replaces: 12587703B) In-Stock Immediately $ 22.14

18 WP12566606ED Hinge, Top   (Replaces: 12566606ED) In-Stock Immediately $ 47.13

20 67006564 Screw (8)   (Replaces: 12991302) In-Stock Immediately $ 8.15

21 67001012 Cover, Hinge(black)   (Replaces: 12477601B) Special Order $ 49.71

22 WPW10534167 Grille Assembly (black)   (Replaces: W10236650) Special Order $ 91.42

23 67007018 Pin, Bottom Hinge   (Replaces: 10200802) In-Stock Immediately $ 8.62

25 67006425 Screw (9)   (Replaces: 12990511) In-Stock Immediately $ 7.30

26 W10325141 Hinge, Bottom (black) Special Order $ 62.90

28 W10210978 Cover, Unit Special Order $ 201.78

29 12820505 Insulation, Sound Special Order $ 71.70

30 W10619951 Tube, Drain   (Replaces: W10210987) In-Stock Immediately $ 42.39

31 W10208592 Guard-water Valve Appelez-nous -
32 W10216614 Sweep-water Valve Special Order $ 18.51

33 B5759655 Gasket Special Order $ 13.03

34 WPM0274062 Shim (stainless)   (Replaces: M0274062) In-Stock Immediately $ 24.43
