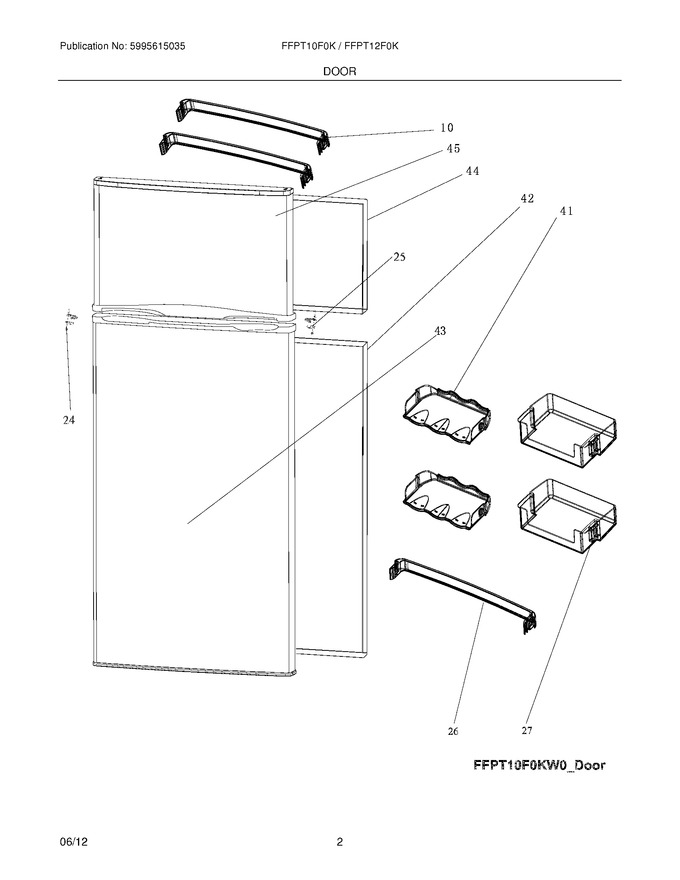

03 - Door
05 - Cabinet/controls
07 - System
08 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304470314 | Rack,door ,freezer |
|
$ 46.24 | |||||
| 24 | 5304486755 | Closer,door ,left |
|
$ 13.77 | |||||
| 25 | 5304486756 | Closer,door ,right |
|
$ 4.35 | |||||
| 26 | 5304470328 | Rack,door ,refrigerator |
|
Immediately | $ 69.36 | ||||
| 27 | 5304470329 | Bin-door |
|
$ 75.97 | |||||
| 41 | 5304470341 | Tray,can Dispenser |
|
$ 246.19 | |||||
| 43 | 5304486192 | Door,refr ,silver Mist ,complete Assy |
|
- | |||||
| 45 | 5304486194 | Door,frzr ,silver Mist ,complete Assy |
|
- | |||||
| F42 | 5304491301 | Gasket,refr Door ,gray (Replaces: 5304486195) |
|
$ 126.32 | |||||
| F44 | 5304486196 | Gasket,frzr Door ,gray |
|
- |
