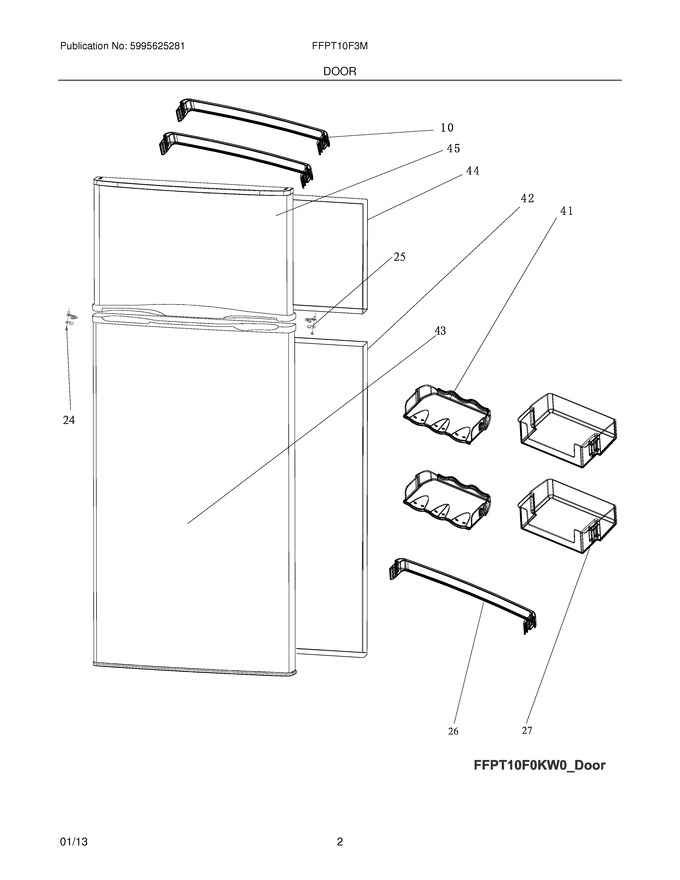

03 - Door
05 - Cabinet/controls
07 - System
08 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304470314 | Rack,door ,freezer |
|
$ 46.24 | |||||
| 24 | 5304486755 | Closer,door ,left |
|
$ 13.77 | |||||
| 25 | 5304486756 | Closer,door ,right |
|
$ 4.35 | |||||
| 26 | 5304470328 | Rack,door ,refrigerator |
|
Immediately | $ 69.36 | ||||
| 27 | 5304470329 | Bin-door |
|
$ 75.97 | |||||
| 41 | 5304470341 | Tray,can Dispenser |
|
$ 246.19 | |||||
| 43 | 5304490207 | Door,refr ,white ,complete Assy |
|
- | |||||
| 45 | 5304490209 | Door,frzr ,white ,complete Assy |
|
- | |||||
| F42 | 5304490971 | Gasket-refr Door,white ,magnetic (Replaces: 5304470342) |
|
Immediately | $ 338.50 | ||||
| F44 | 5304470343 | Gasket-frzr Door,white ,magnetic |
|
$ 85.63 |
