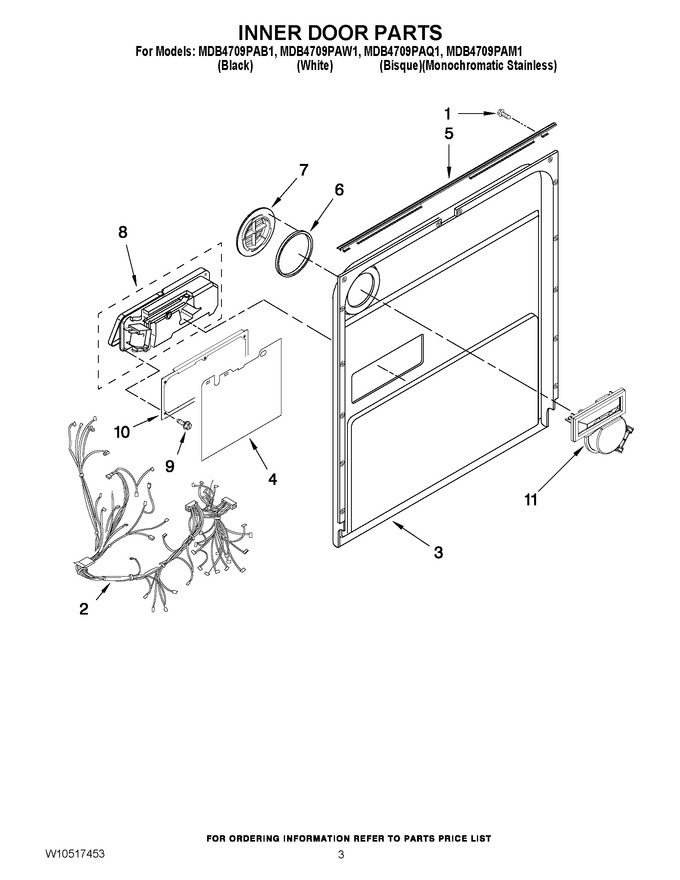

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw, Door (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 2 | W10442483 | Wiring Harness |
|
- | |||||
| 3 | W10274924 | Inner Door |
|
$ 102.52 | |||||
| 4 | WPW10482094 | Cover, Dispenser (Replaces: W10482094) |
|
Immediately | $ 32.36 | ||||
| 5 | W10837566 | Seal, Door (Replaces: W10274923) |
|
Immediately | $ 86.84 | ||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WPW10334900 | Cover, Vent (Replaces: W10334900) |
|
$ 45.85 | |||||
| 8 | W11820247 | Dispenser Assembly (Replaces: W10428217) |
|
Immediately | $ 127.67 | ||||
| 9 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 10 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 37.79 | |||||
| 11 | WPW10329609 | Vent Assembly (Replaces: W10329609) |
|
Immediately | $ 86.34 |
