SELECT A DIAGRAM
New Model Search:

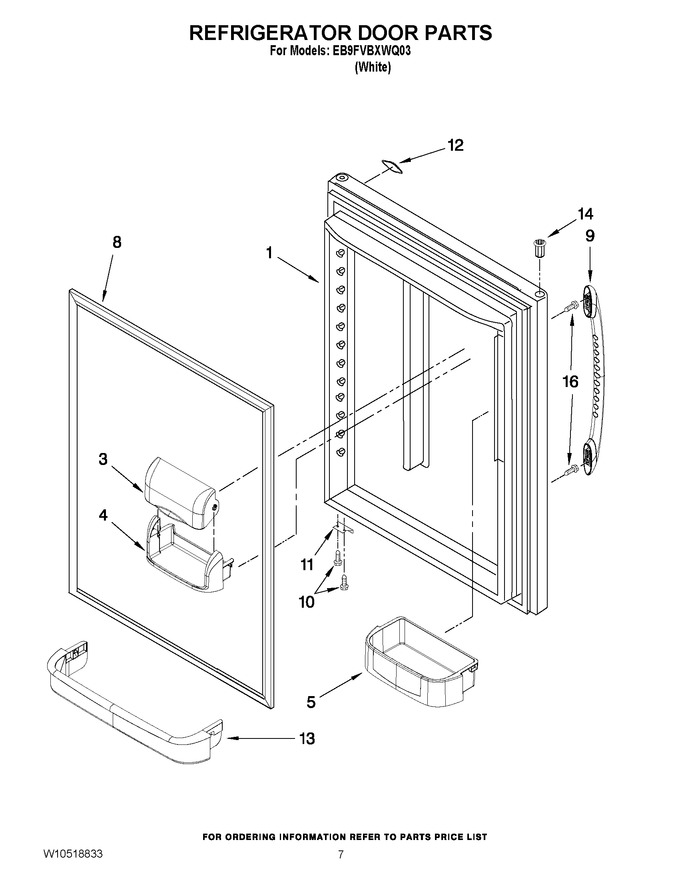

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109402WQ | Door, Refrigerator (white) (Replaces: 13109402W) |
|
$ 1,100.83 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | 67001141 | Bucket, Small (2) (Replaces: 12557202) |
|
Immediately | $ 78.91 | ||||
| 5 | WP67001021 | Bucket, Medium (1) (Replaces: 12557204) |
|
$ 84.95 | |||||
| 8 | WPW10443309 | Gasket, Door (white) (Replaces: W10443309) |
|
Immediately | $ 365.24 | ||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10222984N) |
|
$ 205.46 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 12 | WPW10391355 | Nameplate (Replaces: W10391355) |
|
$ 75.65 | |||||
| 13 | 67001139 | Retainer, Ref Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 14 | WP67004977 | Bushing (4) (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 16 | WPW10288153 | Screw-flat-(2) (Replaces: W10288153) |
|
Immediately | $ 9.65 |
