SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts

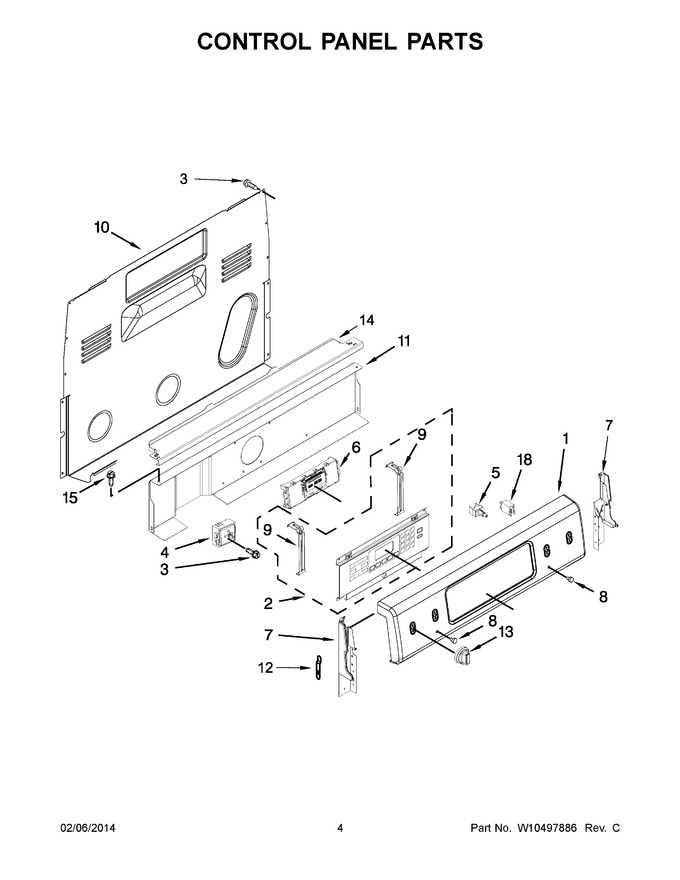

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10347953		Panel, Backguard (black)		Appelez-nous	-
1	W10347954		Panel, Backguard (stainless)		Appelez-nous	-
1	W10347952		Panel, Backguard (white)				$ 146.96
2	W10324427		Assembly, Active Overlay				$ 319.24
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4	WPW10434452		Switch, Infinite (left Front & Right Front)   (Replaces: W10434452)			Immediately	$ 140.84
4	WPW10411934		Switch, Infinite (left Rear)   (Replaces: W10411934)			Immediately	$ 109.39
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 86.31
6	WPW10340694		Control, Mrc   (Replaces: W10340694)				$ 714.84
7	W11219664		Endcap Black (left Hand)   (Replaces: W10184437)				$ 153.83
7	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
7	W11219665		Endcap Black (right Hand)   (Replaces: W10184438)				$ 45.17
7	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
8	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
9	W10318546		Bracket, Control		Appelez-nous	-
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10134247		Shield, Heat			Immediately	$ 358.82
12	3196200		Clip, Spring				$ 10.45
13	W10854052		Knob (stainless)   (Replaces: W10324395)				$ 30.14
13	W10524673		Knob (black)				$ 13.52
13	W10524672		Knob (white)				$ 18.92
14	W10525121		Bracket, Console Mounting				$ 98.85
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
