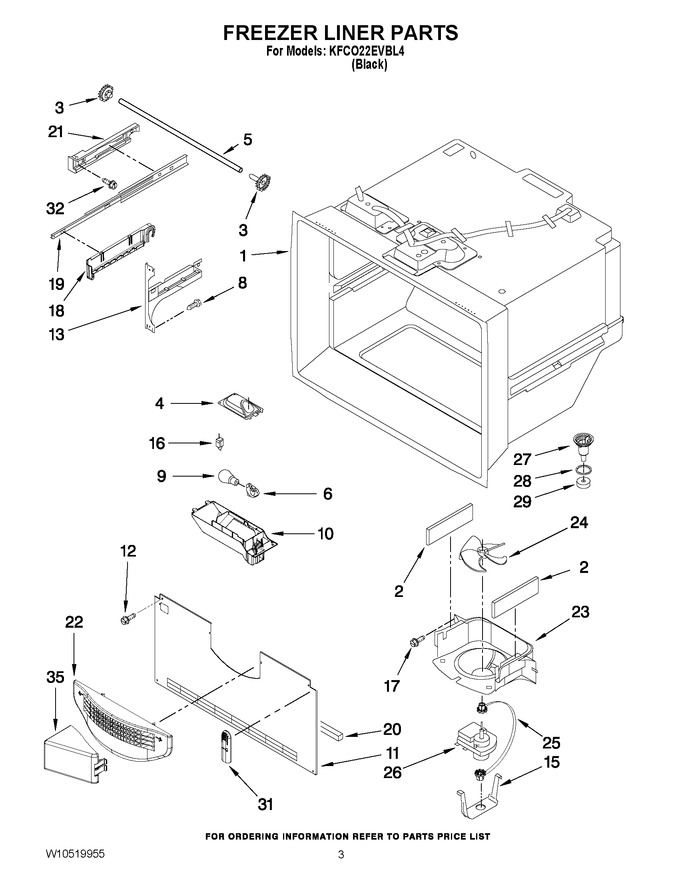

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | 12002497 | Gear (includes Both) |
|
Immediately | $ 22.51 | ||||
| 4 | W11702858 | Housing, Light (Replaces: 12476401V) |
|
$ 85.82 | |||||
| 5 | W11028221 | Shaft (Replaces: 12812903WD) |
|
$ 31.66 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 8 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 8.00 | |||||
| 9 | 4396822 | Bulb-light (Replaces: W10311527) |
|
Immediately | $ 12.93 | ||||
| 10 | W11712699 | Module, Light (Replaces: W10119832) |
|
$ 87.64 | |||||
| 11 | W10308420 | Cover, Evaporator |
|
$ 287.64 | |||||
| 12 | 67006425 | Screw (4) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 13 | WPW10330991 | Bracket, Door (left) (Replaces: W10330991) |
|
$ 156.49 | |||||
| 13 | WPW10330993 | Bracket, Door (right) (Replaces: W10330993) |
|
$ 158.18 | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 17 | WP98165 | Screw (2) (Replaces: 12990504) |
|
$ 8.00 | |||||
| 18 | W10119848 | Cradle, Basket (left) |
|
$ 47.41 | |||||
| 18 | W10119849 | Cradle, Basket (right) |
|
Immediately | $ 83.81 | ||||
| 19 | W11658403 | Slide, Drawer (2) (Replaces: W10488001N) |
|
Immediately | $ 214.52 | ||||
| 20 | W11159728 | Gasket, Bottom (Replaces: A3189396) |
|
Immediately | $ 28.86 | ||||
| 21 | WPW10544403 | Adapter, Side (left) (Replaces: W10284686) |
|
$ 131.50 | |||||
| 21 | WPW10544404 | Adapter, Side (right) (Replaces: W10284687) |
|
$ 134.17 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet |
|
$ 48.38 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 32 | WP489474 | Screw (6) (Replaces: 12990501) |
|
Immediately | $ 7.97 | ||||
| 35 | W10157765 | Diverter, Air |
|
$ 88.43 | |||||
| NI | W10196195 | Harness, Fz Module (includesthermistor) |
|
$ 130.69 |
