01 - Cooktop Parts

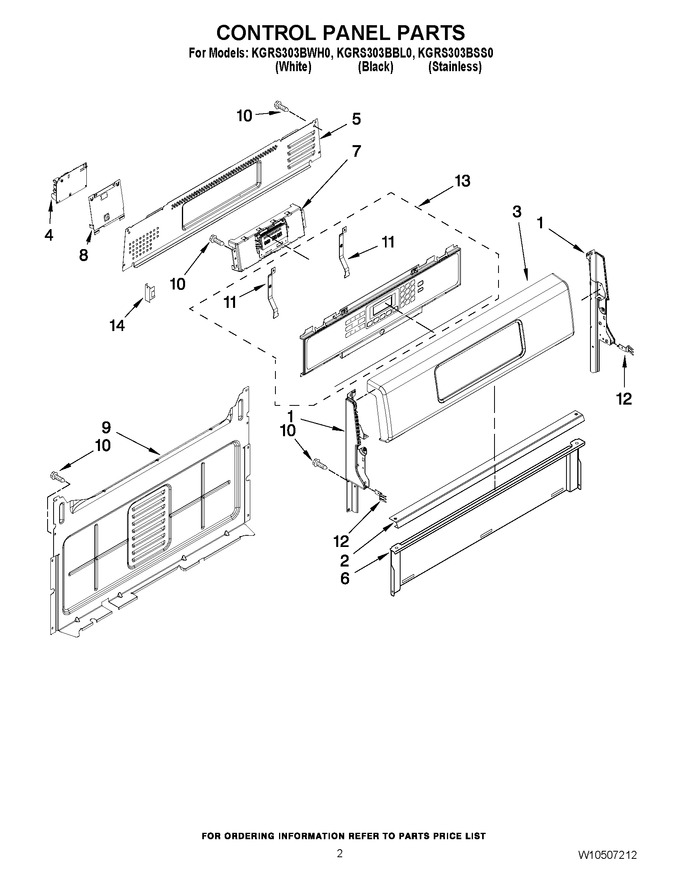

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (left Hand White) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219664 | Endcap, Left Hand (black) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219370 | Endcap (right Hand White) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219665 | Endcap, Right Hand (black) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | W10211996 | Bracket, Console |
|
- | |||||
| 3 | W10347960 | Console (stainless) |
|
- | |||||
| 3 | W10347958 | Console (white) |
|
$ 120.54 | |||||
| 3 | W10347959 | Console (black) |
|
- | |||||
| 4 | WPW10331686 | Module, Spark (Replaces: W10331686) |
|
Immediately | $ 363.24 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 7 | WPW10340700 | Control, Mrc (Replaces: W10340700) |
|
$ 408.81 | |||||
| 8 | W10333917 | Bracket, Dsi |
|
- | |||||
| 9 | W10184251 | Cover, Main Wire |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 11 | W10318546 | Bracket, Control |
|
- | |||||
| 12 | 8523412 | Bracket, Rear |
|
$ 151.11 | |||||
| 13 | W10324433 | Assembly, Overlay |
|
$ 316.04 | |||||
| 14 | 8522425 | Module, Spark |
|
$ 122.75 |
