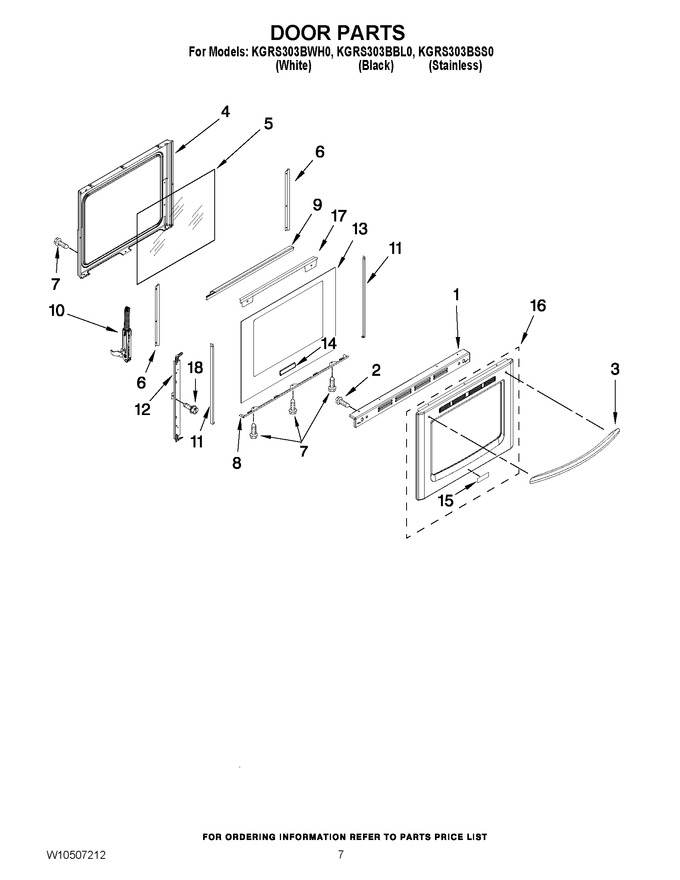

05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 125.35
1	W10294855		Trim, Vent (black)			Immediately	$ 119.88
2	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
3	W10284917		Handle, Door (white)				$ 273.77
3	WPW10289076		Handle, Door (stainless)   (Replaces: W10289076)				$ 334.61
3	W10284916		Handle, Door (black)				$ 247.66
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 331.51
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
6	W10294852		Bracket, Ss Glass				$ 144.19
7	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
8	W10334031		Trim, Door Bottom (black)				$ 77.86
8	WPW10333990		Trim, Door Bottom (white)   (Replaces: W10333990)			Immediately	$ 51.90
9	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
10	WPW10440013		Hinge, Active Door   (Replaces: W10440013)			Immediately	$ 63.80
11	W10334003		Trim, Door Side (white)			Immediately	$ 84.58
11	W10334004		Trim, Door Side (black)				$ 233.76
12	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
13	WPW10495964		Glass, Outer (stainles)   (Replaces: W10495964)				$ 372.84
13	WPW10495963		Glass, Outer (black)   (Replaces: W10495963)				$ 162.12
13	WPW10495962		Glass, Outer (white)   (Replaces: W10495962)				$ 402.77
14	WPW10243393		Badge (white)   (Replaces: W10243393)				$ 69.98
14	WPW10243392		Badge (black)   (Replaces: W10243392)				$ 73.70
15	WPW10243391		Badge (stainless)   (Replaces: W10243391)				$ 58.31
16	WPW10490829		Panel, Ss Outer   (Replaces: W10490829)				$ 379.64
17	W10339814		Trim, Ss Vent				$ 139.33
18	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
