01 - Top And Cabinet Parts
02 - Door Parts

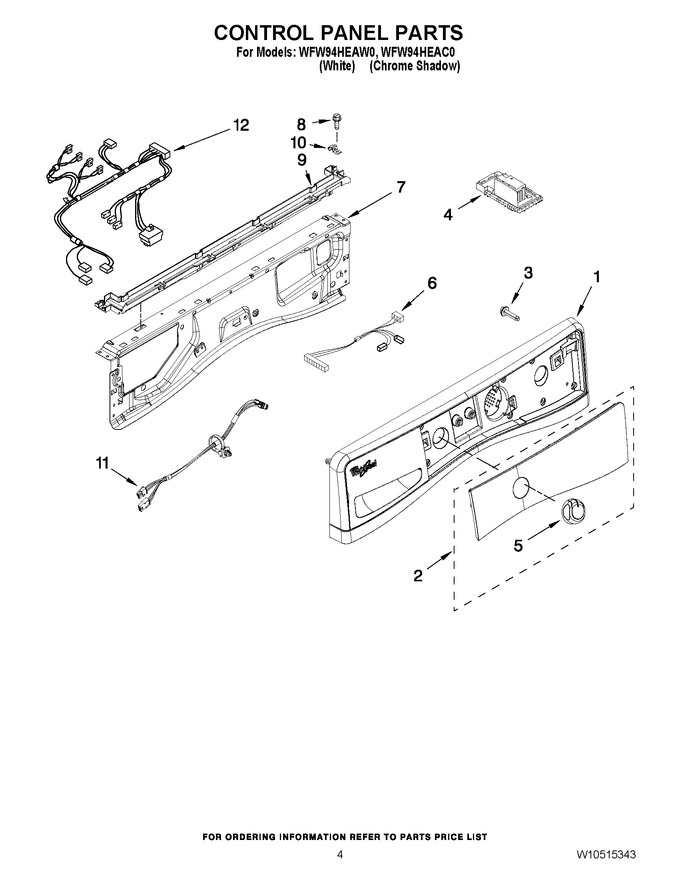

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10463516 | Console Asssembly (chrome Shadow) (Replaces: W10463516) |
|
$ 382.74 | |||||
| 1 | W10446408 | Console Asssembly (white) |
|
$ 203.22 | |||||
| 2 | WPW10446418 | Iml Assembly (includes Item 3) (white) (Replaces: W10391530) |
|
$ 688.11 | |||||
| 2 | W10446420 | Iml Assembly (includes Item 3) (chrome Shadow) (Replaces: W10463520) |
|
$ 667.98 | |||||
| 3 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 4 | W10422889 | Control Unit, Central |
|
$ 347.35 | |||||
| 5 | W10391535 | Knob Assembly |
|
$ 25.18 | |||||
| 6 | W10486221 | Harness, Ui Jumper |
|
- | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Channel, Water (includes Item 10) (Replaces: W10317570) |
|
$ 86.61 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.72 | |||||
| 11 | W10485684 | Harness, Led Ui |
|
$ 24.69 | |||||
| 12 | W10422437 | Harness, Wiring (upper Main) |
|
- |
