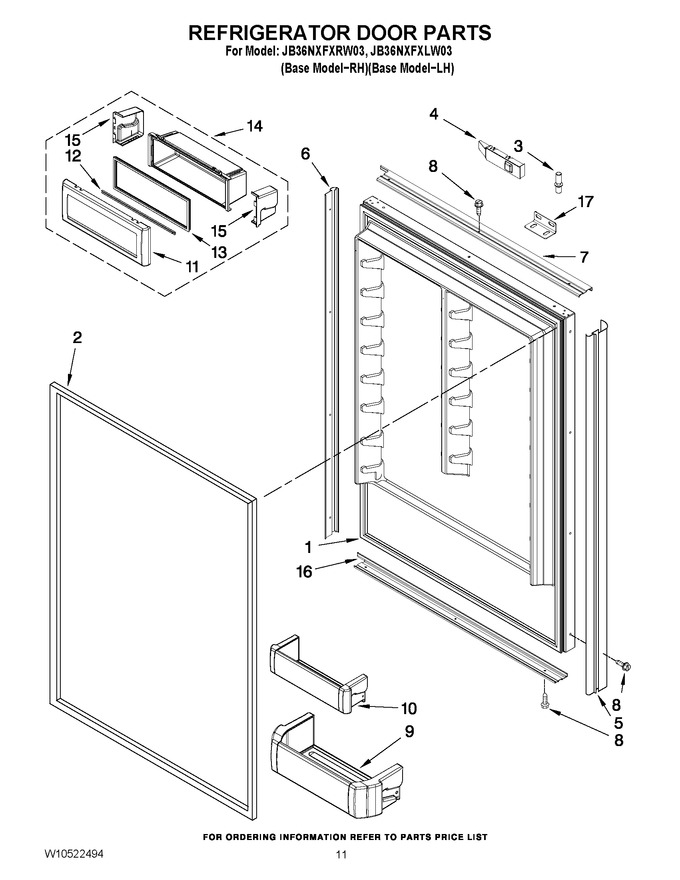

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10202908		Door, Refrigerator (includes Item 2) (left)		Appelez-nous	-
1	W10138410		Door, Refrigerator (includes Item 2) (right)		Appelez-nous	-
2	2302709		Gasket, Door   (Replaces: 2300184)				$ 295.47
3	W10234194		Pin-door				$ 15.89
4	W10197766		Insert, Door (bottom)				$ 15.53
4	W10197748		Insert, Door (top)				$ 16.95
5	W10188556		Trim Door (left)		Appelez-nous	-
5	W10202604		Trim Door (right)				$ 128.26
6	W10202602		Trim-door, Side (hinge Side)				$ 226.17
7	W10167365		Trim-door, Top (right)		Appelez-nous	-
7	W10217464		Trim-door, Top (left)		Appelez-nous	-
8	WPW10142233		Screw, 8-15 X 1/2   (Replaces: W10142233)				$ 8.04
9	W10323749		Shelf, Door(gallon)				$ 123.16
10	W11590561		Shelf, Door   (Replaces: W10323603)				$ 84.81
11	2309255		Door, Utility Bin				$ 43.26
12	2309256		Rail, Lid		Appelez-nous	-
13	2309257		Gasket, Utility Bin		Appelez-nous	-
14	W10323044		Bin, Utility				$ 119.32
15	WPW10323173		End Cap, Utility Bin (lh)   (Replaces: W10323173)				$ 7.74
15	WPW10323172		End Cap, Utility Bin (rh)   (Replaces: W10323172)				$ 7.74
16	W10167371		Trim-door, Bottom (right)				$ 151.56
16	W10202901		Trim-door, Bottom (left)		Appelez-nous	-
17	W10199955		Bracket Panel Mounting				$ 84.49
