SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

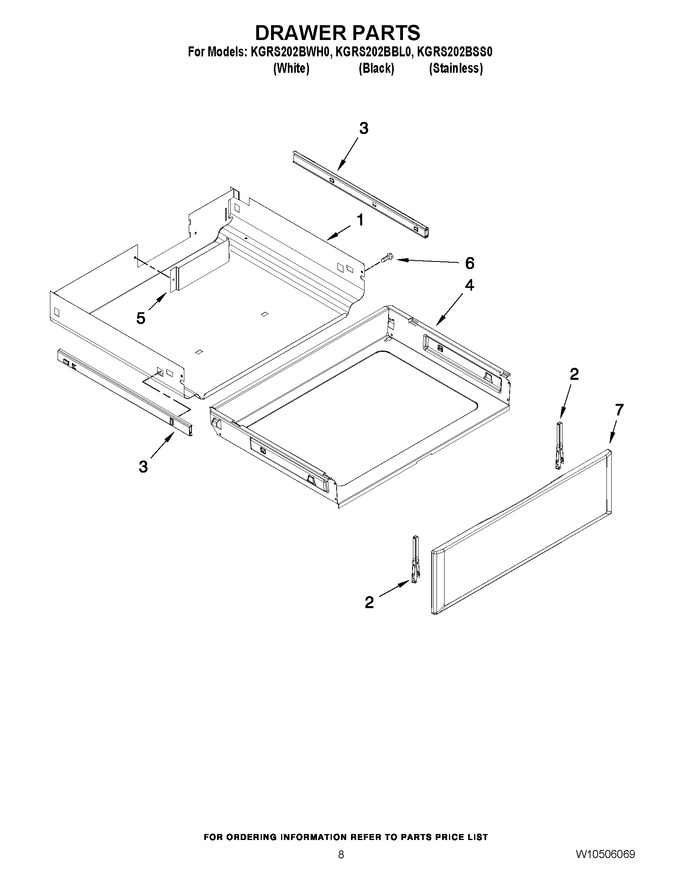

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10634260 | Enclosure, Drawer (Replaces: W10106394) |
|
Immediately | $ 209.02 | ||||
| 2 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 39.27 | |||||
| 3 | WPW10441804 | Slide, Drawer (left Hand) (Replaces: W10441804) |
|
Immediately | $ 108.20 | ||||
| 3 | WPW10441805 | Slide, Drawer (right Hand) (Replaces: W10441805) |
|
Immediately | $ 108.13 | ||||
| 4 | W10813962 | Drawer (Replaces: W10300032) |
|
Immediately | $ 138.15 | ||||
| 5 | W10325438 | Cover, Panel |
|
$ 156.99 | |||||
| 6 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 7 | W10330041 | Panel, Drawer Frnt (white) |
|
$ 190.60 | |||||
| 7 | W10330042 | Panel, Drawer Frnt (black) |
|
$ 139.27 | |||||
| 7 | WPW10330044 | Panel, Drawer Frnt (stainless) (Replaces: W10330044) |
|
$ 215.30 |
