SELECT A DIAGRAM

01 - Cover

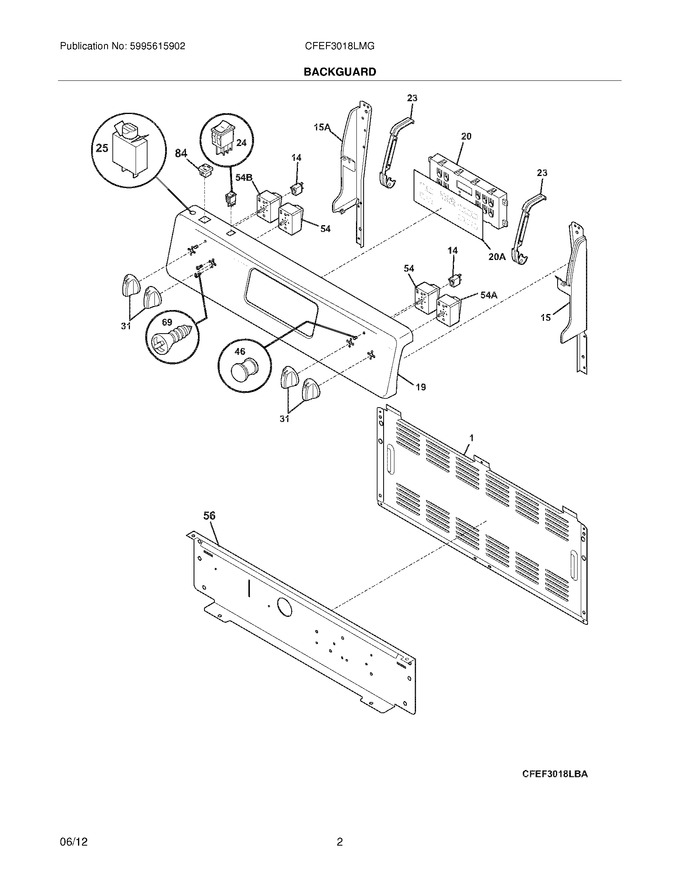

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316281800)				$ 64.04
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 59.52
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316541660		Panel,backguard ,silver Mist				$ 99.70
23	316441600		Bracket-clock Mtg,black				$ 22.75
31	316543801		Knob,control ,black ,(4)			Immediately	$ 61.53
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 18.63
56	316370101		Shield,backguard ,black				$ 34.60
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.47
84	318146832		Outlet,electrical ,black ,combined		Appelez-nous	-
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419141		Overlay,clock ,black ,es300			Immediately	$ 63.19
F20	5304509493		Clock/timer,electronic ,es300   (Replaces: 316557115)			Immediately	$ 235.97
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316448700)			Immediately	$ 12.64
F25	316508401		Switch,circuit Break				$ 129.15
F54	316436000		Switch,infinite ,small Element			Immediately	$ 89.27
F54A	316436001		Switch,infinite ,large Element			Immediately	$ 57.42
F54B	316238201		Switch,infinite Radian ,dual			Immediately	$ 98.89
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96

    View Diagram in Separate Window       Print Part List
