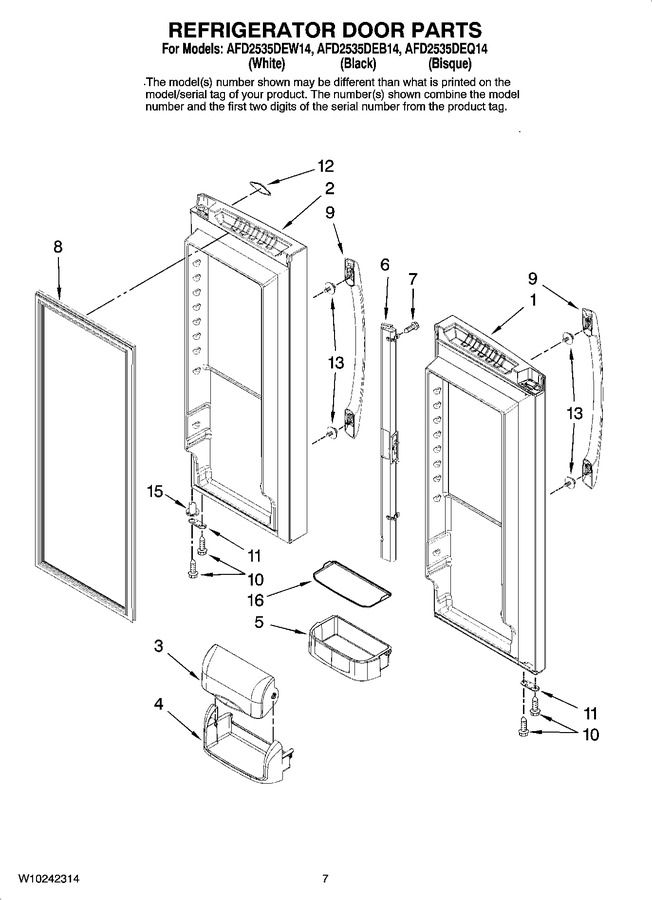

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13024018BQ Door, Left (black) Appelez-nous -
1 13024018QQ Door, Left (bisque) Appelez-nous -
1 13024018WQ Door, Left (white) Appelez-nous -
2 13024017QQ Door, Right (bisque) Appelez-nous -
2 13024017WQ Door, Right (white) Appelez-nous -
2 13024017BQ Door, Right (black) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 67003637) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 12699207 Bucket, Door (gallon (2)) Appelez-nous -
5 WPW10371193 Bucket, Door (medium (3))   (Replaces: 67003770) In-Stock Immediately $ 74.80

6 WP12722803B Mullion, Door (black)   (Replaces: 67003264) In-Stock Immediately $ 206.80

6 WP12722803W Mullion, Door (white)   (Replaces: 67003263) In-Stock Immediately $ 261.21

7 W11311945 Screw   (Replaces: 67006786) Special Order $ 14.72

8 W11368721 Gasket, Door (black)   (Replaces: W10163895) In-Stock Immediately $ 169.21

8 W10830189 Gasket, Door (white)   (Replaces: W10137006) In-Stock Immediately $ 228.91

9 WPW10119668 Handle, Door (black - Lh)   (Replaces: W10119668) Special Order $ 189.04

9 W10119663 Handle, Door (white - Rh) Special Order $ 75.72

9 W10119666 Handle, Door (white - Lh) Special Order $ 104.36

9 W10119664 Handle, Door (bisque - Rh) Appelez-nous -
9 W10119667 Handle, Door (bisque - Lh) Special Order $ 73.23

9 W10119665 Handle, Door (black - Rh) Special Order $ 75.66

10 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

11 12968202W Stop, Door (white) Special Order $ 69.29

11 W11708403 Stop, Door (black)   (Replaces: 67007011) In-Stock Immediately $ 14.75

12 Y12528501 Nameplate In-Stock Immediately $ 62.74

13 WP12992902 Mount, Handle   (Replaces: 12992902) Special Order $ 11.91

15 WP67003639 Closure, Door (black)   (Replaces: 67003639) Special Order $ 90.32

15 WP67003638 Closure, Door (white)   (Replaces: 67003638) In-Stock Immediately $ 8.15

16 67005453 Grippers (gallon) Appelez-nous -
16 67003212 Grippers (medium) Appelez-nous -
