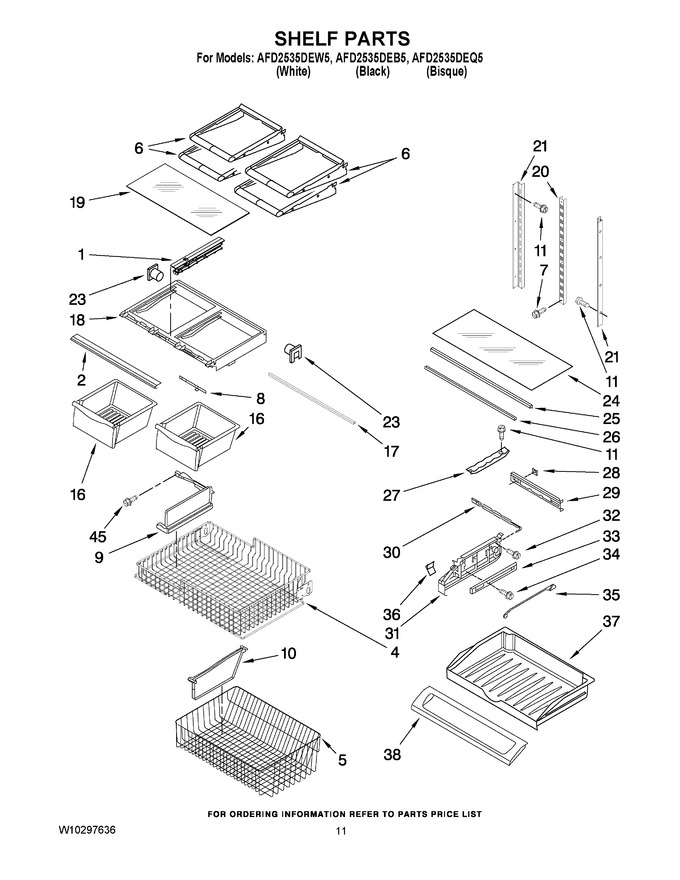

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: 12796401) |
|
Immediately | $ 30.70 | ||||
| 2 | W10231344 | Trim, Crisper |
|
$ 58.15 | |||||
| 4 | 12896403 | Basket, Freezer (upper) |
|
- | |||||
| 5 | WPW10503184 | Basket, Freezer (lower) (Replaces: 13016003) |
|
$ 238.17 | |||||
| 6 | 12654610 | Shelf (4) |
|
- | |||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.13 | |||||
| 8 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 9 | 12693802 | Divider, Basket (upper) |
|
- | |||||
| 10 | 12659608 | Divider, Basket Lower |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 16 | WP67004515 | Pan, Crisper (Replaces: 12804601SP) |
|
Immediately | $ 168.30 | ||||
| 17 | WP12642303WD | Brace, Crisper (Replaces: 12642303WD) |
|
$ 106.91 | |||||
| 18 | WP67003854 | Frame, Crisper (Replaces: 12796301SP) |
|
Immediately | $ 227.55 | ||||
| 19 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824) |
|
$ 212.77 | |||||
| 20 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 21 | W10251971 | Ladder, Side |
|
$ 56.64 | |||||
| 23 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 80.83 | |||||
| 24 | W11033333 | Glass, Pantry (Replaces: 12204830) |
|
$ 227.27 | |||||
| 25 | W11812285 | Trim, Pantry Glass (Replaces: 12655902SP) |
|
$ 50.79 | |||||
| 26 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WD) |
|
$ 103.20 | |||||
| 27 | WP67001719 | Track-pantry (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 28 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 21.04 | |||||
| 29 | 12656202 | Housing, Control |
|
$ 141.75 | |||||
| 30 | WP67003793 | Slide, Control (Replaces: 12655402) |
|
Immediately | $ 74.75 | ||||
| 31 | W10874836 | Endcap, Pantry (left) (Replaces: 12656106) |
|
Immediately | $ 38.43 | ||||
| 31 | W10874836 | Endcap, Pantry (right) (Replaces: 12656019) |
|
Immediately | $ 38.43 | ||||
| 32 | WP98165 | Screw (4) (Replaces: 12990504) |
|
$ 8.00 | |||||
| 33 | WPW10235370 | Glide, Pantry (2) (Replaces: 13058101V) |
|
Immediately | $ 199.80 | ||||
| 34 | WP67006415 | Screw (4) (Replaces: 12990512) |
|
$ 7.80 | |||||
| 35 | WP67003795 | Bar, Temp Cont. (Replaces: 12655304) |
|
$ 8.05 | |||||
| 36 | W11498983 | Knob, Control (Replaces: 12655204V) |
|
$ 29.18 | |||||
| 37 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 162.82 | |||||
| 38 | W10827015 | Lid, Pantry (Replaces: 12656816) |
|
Immediately | $ 175.81 | ||||
| 45 | 12990601 | Screw |
|
- |
