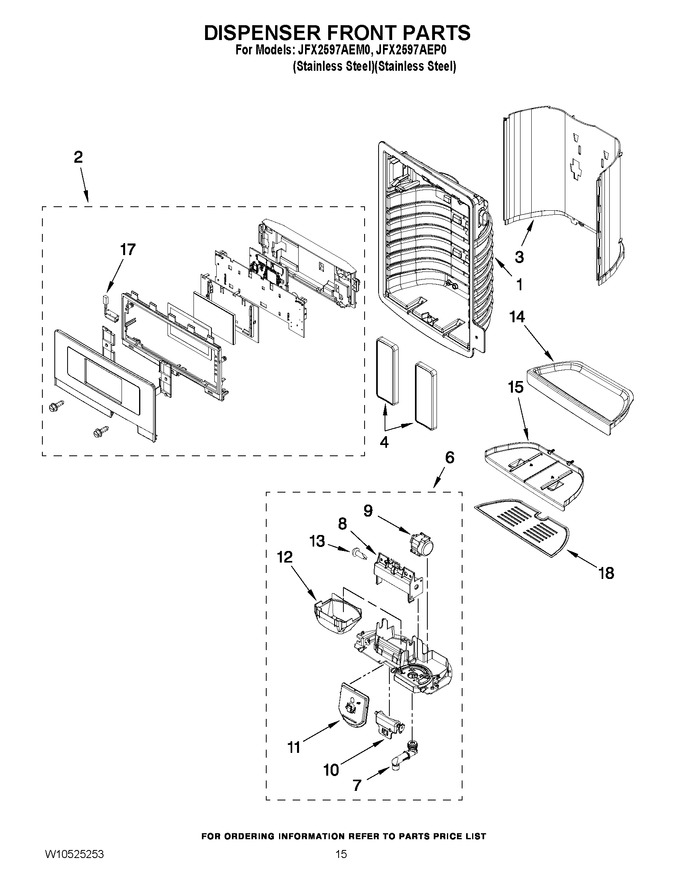

08 - Dispenser Front Parts


09 - Unit Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10458218		U I Assemly (stainless)		Appelez-nous	-
3	W10305890		False Wall Disp. (nickel)				$ 92.99
4	WPW10353848		Pad-assembly-with Blue Light (grey)   (Replaces: W10353848)				$ 321.56
6	WPW10353552		Separator Assy.   (Replaces: W10353552)				$ 166.29
7	W11227371		Spigot Body Assy.   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 20.52
12	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
13	W10174818		Clip-motor Cplng.		Appelez-nous	-
14	WPW10305897		Tray-dispenser (stainless)   (Replaces: W10305897)				$ 84.81
15	WPW10267863		Slide-tray Disp. (apollo Grey)   (Replaces: W10267863)				$ 73.22
17	W11290115		Led Assembly   (Replaces: W10238083)				$ 84.45
18	W10215957		Grate, Drip				$ 52.76
