Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12894232R Door, Freezer (bronze) Appelez-nous -
2 W10298180 Handle (bronze) Appelez-nous -
3 WP67006113 Mount, Handle   (Replaces: 13001201) In-Stock Immediately $ 12.56

4 W10436252 Gasket, Door (black) In-Stock Immediately $ 362.28

5 W10160454 Screw Special Order $ 14.42

6 W10259825 Trim, Door (black) Appelez-nous -
7 W10214142 Spacer, Handle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

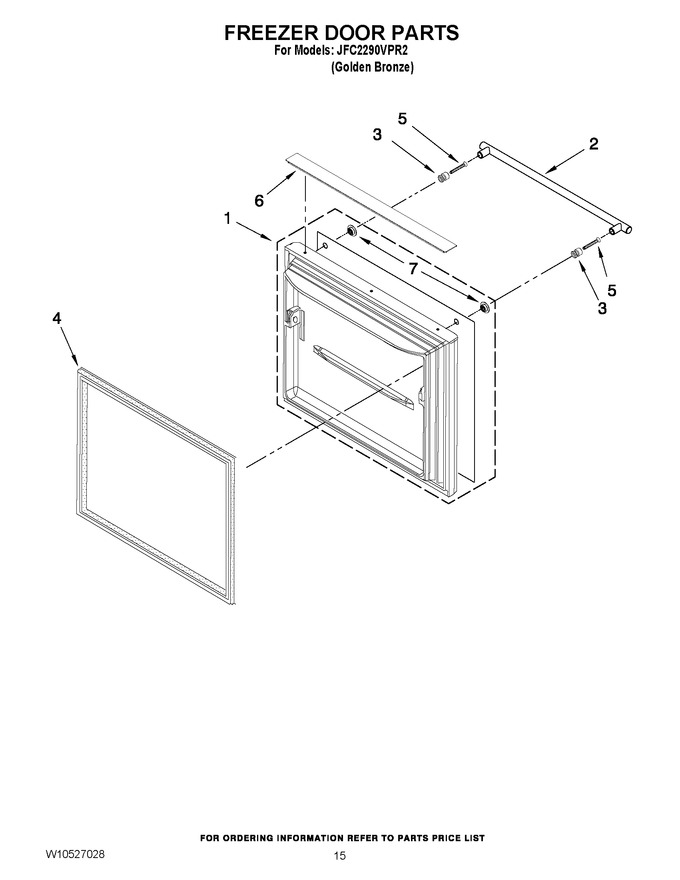

Diagram for JFC2290VPR2
