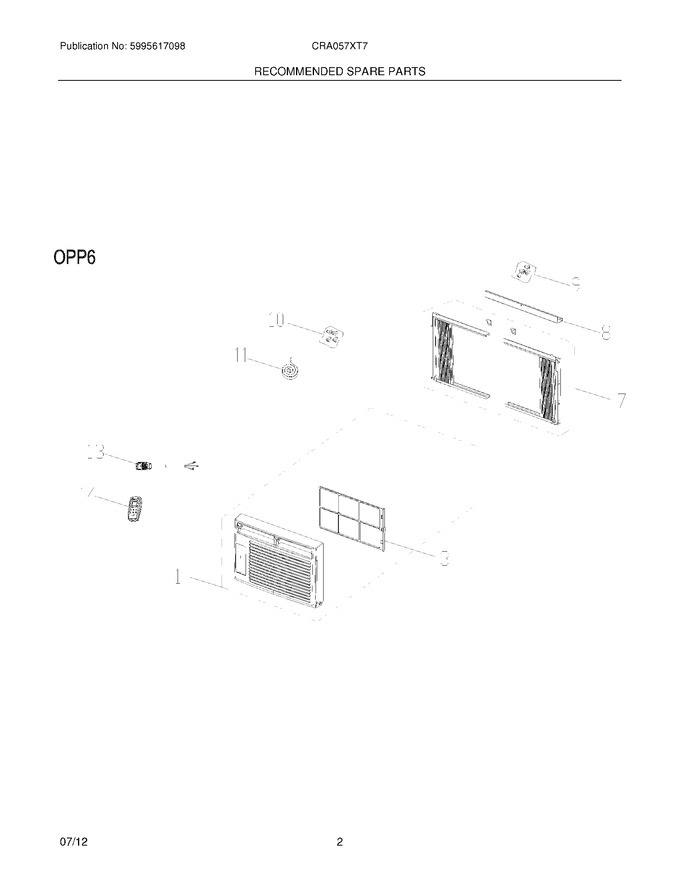

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304477139 | Front Assembly,complete Panel |
|
- | |||||
| 3 | 5304477140 | Filter,air |
|
$ 19.01 | |||||
| 7 | 5304472189 | Window Filler Kit,slider Panels |
|
- | |||||
| 8 | 5304472190 | Rail,shutter Track ,top |
|
- | |||||
| 9 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 10 | 5304472192 | Hardware,mounting ,screws/locks |
|
$ 8.49 | |||||
| 11 | 5304472193 | Seal Kit,foam ,sash Filler |
|
- | |||||
| F13 | 5304487579 | Power Cord,electric,lcdi |
|
- | |||||
| F14 | 5304476866 | Remote Control,transmitter |
|
$ 91.40 |
