SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Freezer Shelving


07 - Handles & Trim


08 - Ice Maker 61005508


09 - Interior Cabinet


10 - Left Refrigerator Door


11 - Ref Dr Storage & Center Hinges


12 - Refrigerator Shelving


13 - Right Refrigerator Door


14 - Supplemental Information


15 - Water Dispenser & Filter


16 - Wiring Information

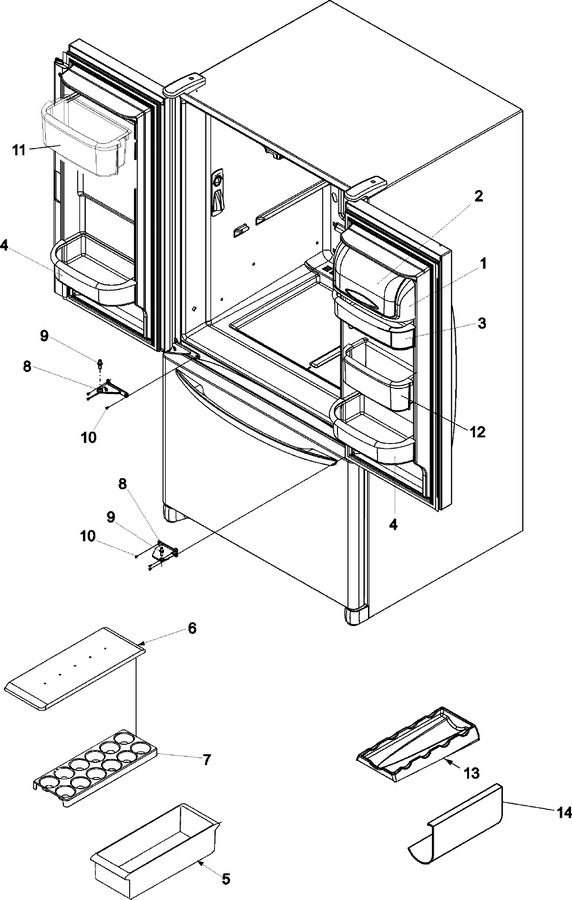

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12744905		Dairy Assy   (Replaces: 67003819)	10			$ 113.99
2	WP67003637		Door, Dairy   (Replaces: 67003637)	10		Immediately	$ 82.67
3	67003212		Gripper, Bucket	10	Appelez-nous	-
3	WPW10371193		Bucket Assy, Ref. (med W/grip)   (Replaces: 67003770)	10		Immediately	$ 74.80
4	WPW10289497		Bucket Ref Door Assy   (Replaces: 67003768)	10		Immediately	$ 81.09
5	10423131		Bin, Utility	10			$ 31.13
6	10436404		Lid, Utility	10			$ 60.85
7	10436506		Tray, Egg	10			$ 8.28
8	WP12607104ED		Hinge, Center (blk)   (Replaces: 67001167)	10			$ 167.35
9	WP67006642		Pin, Center Hinge   (Replaces: 67002734)	10			$ 8.78
10	W11573362		Screw, T. F.   (Replaces: M0226233)	10			$ 14.72
11	67004003		Bucket, Tall Refrigerator	10			$ 40.80
11	67003914		Bracket, Tilt Out Ref Dr	10	Appelez-nous	-
12	67004004		Bucket, Short Refrigerator	10	Appelez-nous	-
13	67001656		Trivet, Bottle	10			$ 72.49
14	10448903		Rack, Bottle	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
