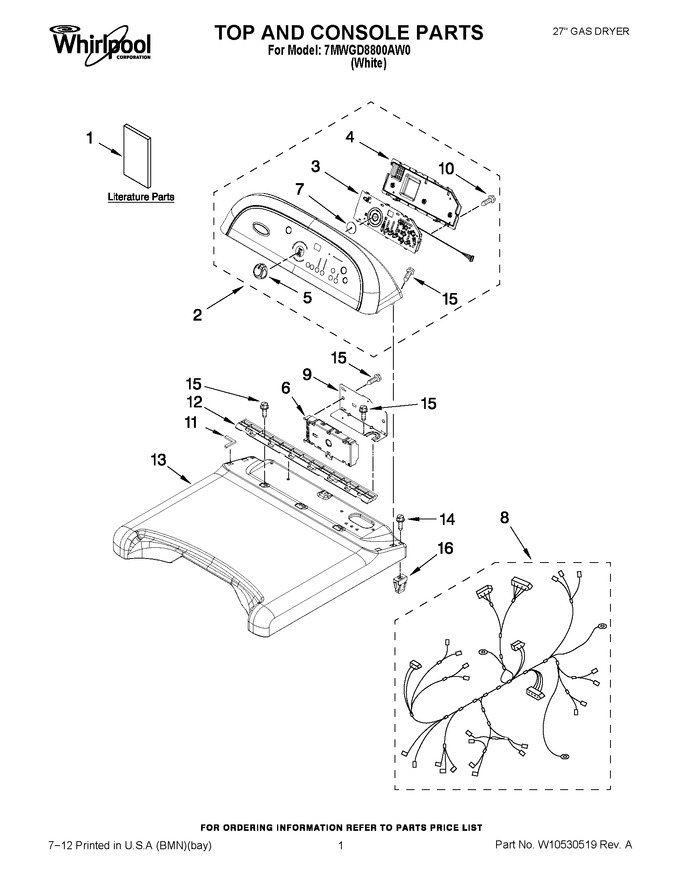

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10492247		Guide, Use & Care		Appelez-nous	-
1	W10492250		Installation Instruction		Appelez-nous	-
1	W10403269		Tech Sheet		Appelez-nous	-
2	WPW10500003		Console Assembly (white)   (Replaces: W10500003)				$ 312.02
3	WPW10388673		Assembly, User Interface   (Replaces: W10388673)				$ 313.89
4	8564265		Cover, Ui-assembly				$ 142.60
5	WPW10211335		Knob, Assembly   (Replaces: W10211335)				$ 59.76
6	WPW10432258		Control Electronic   (Replaces: W10432258)				$ 292.16
7	8572039		Seal, Ui		Appelez-nous	-
8	W10392404		Harness, Wiring		Appelez-nous	-
9	W10211337		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	W10185554		Seal, Foam Top		Appelez-nous	-
12	8558863		Bracket, Console				$ 33.78
13	W10211339		Top (white)		Appelez-nous	-
14	W10131402		Screw		Appelez-nous	-
15	WP33001882		Screw   (Replaces: 337686)				$ 83.71
16	W10112673		Clip, Console				$ 9.75
