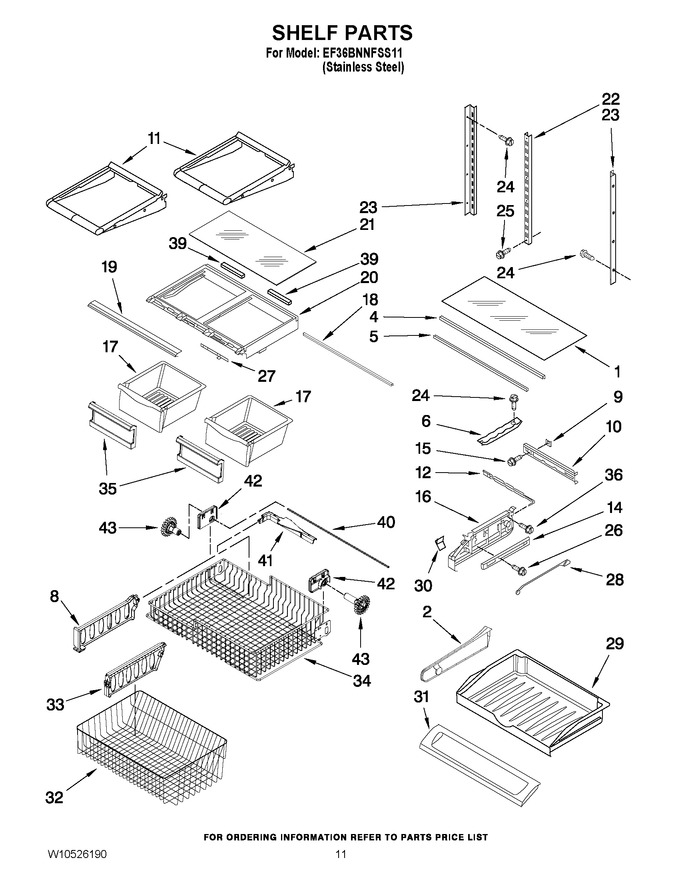

06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11125512		Glass, Pantry   (Replaces: 12204829)			Immediately	$ 253.06
2	WP67002321		Divider, Pantry Drawer   (Replaces: 12709301N)				$ 33.79
4	W11812285		Extr,glass Support   (Replaces: 12655902SP)				$ 53.33
5	WP12227305WD		Brace-pantry   (Replaces: 12227305WH)				$ 108.36
6	WP67001719		Track, Pantry   (Replaces: 12531901)			Immediately	$ 8.99
8	W10241046		Divider, Upper Basket			Immediately	$ 29.19
9	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 22.09
10	12656202		Housing, Control				$ 148.84
11	WP12463911		Shelf, Glide   (Replaces: 12463911)				$ 309.28
12	WP67003793		Slide, Temperature   (Replaces: 12655402)			Immediately	$ 78.49
14	WPW10235370		Glide, Drawer   (Replaces: W10235370)			Immediately	$ 199.80
15	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
16	WP12656018		Track, Pantry (right)   (Replaces: 12656018)			Immediately	$ 58.87
16	WP12656105		Track, Pantry (left)   (Replaces: 12656105)			Immediately	$ 58.41
17	WP67002659		Pan, Crisper   (Replaces: 12531105SP)			Immediately	$ 147.67
18	WP12227304WD		Brace, Crisper   (Replaces: 12227304WD)				$ 108.69
19	W10231488N		Trim, Crisper		Appelez-nous	-
20	WP67006185		Frame, Crisper   (Replaces: 12531202SP)				$ 216.05
21	WP67006655		Glass, Crisper Cover   (Replaces: 12204821N)			Immediately	$ 228.45
22	W10273463		Ladder, Center				$ 29.61
23	W10251971		Ladder, Side				$ 59.47
24	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
25	W10215666		Screw				$ 9.53
26	WP98165		Screw   (Replaces: 12990504)				$ 8.57
27	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
28	67003794		Rod, Temperature Control   (Replaces: 12655303)				$ 13.82
29	W11490183		Drawer, Pantry   (Replaces: 12655702N)				$ 144.29
30	W11498983		Knob, Temperature Control   (Replaces: 12655204)				$ 30.64
31	W10827015		Door, Pantry Drawer   (Replaces: 12656813)			Immediately	$ 175.81
32	W10503185		Basket, Freezer (lower)   (Replaces: W10150040)				$ 156.98
33	W10150061		Divider, Lower Basket				$ 89.33
34	W10348245		Basket, Freezer (upper)				$ 305.90
35	W11206718		Front, Crisper Pan   (Replaces: 12643802SP)				$ 324.43
36	WP67006415		Screw   (Replaces: 12990512)				$ 8.38
39	10685512		Gasket		Appelez-nous	-
40	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 32.38
41	W10149389		Lift, Bail Arm   (Replaces: W10149389N)				$ 92.66
42	W10348260		Mount, Gear (right)				$ 89.90
42	W10348259		Mount, Gear (left)				$ 89.87
43	WPW10474715		Gear (short-left)   (Replaces: W10474715)			Immediately	$ 32.76
43	WPW10474716		Gear (long-right)   (Replaces: W10474716)			Immediately	$ 32.42
