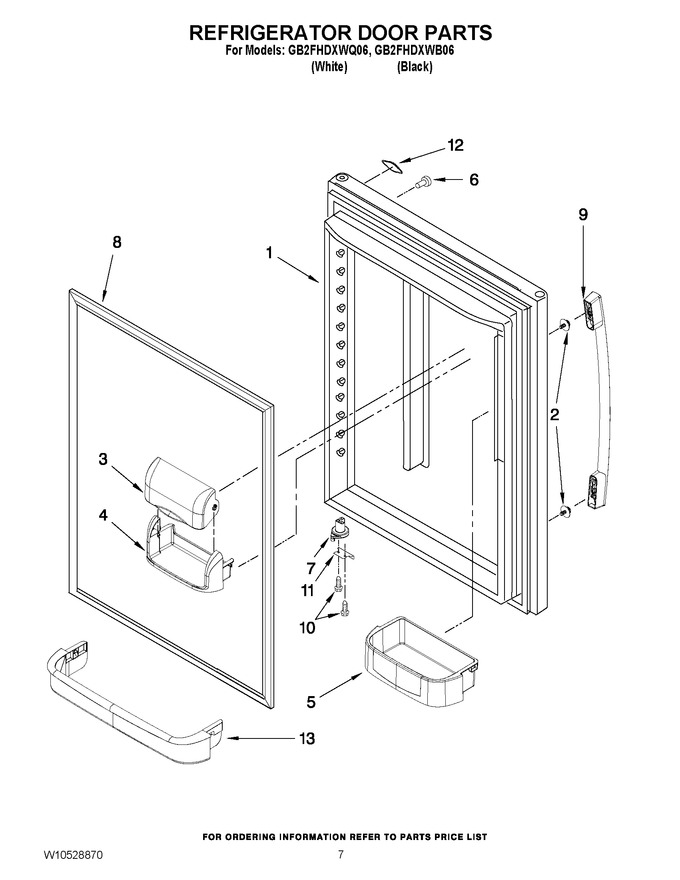

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109401BQ | Door, Refrigerator (black) (Replaces: 13109401B) |
|
$ 1,022.52 | |||||
| 1 | 13109401WQ | Door, Refrigerator (white) (Replaces: 13109401W) |
|
$ 1,022.52 | |||||
| 2 | WPW10288153 | Screw, Handle (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 73.55 | ||||
| 6 | WP67001130 | Plug-button (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 6 | WP12246608 | Plug-button (black) (Replaces: 12246608) |
|
Immediately | $ 7.76 | ||||
| 7 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 7 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10436248) |
|
$ 286.97 | |||||
| 8 | W10443313 | Gasket, Door (white) |
|
$ 343.82 | |||||
| 9 | W11351146 | Handle, Door (black) (Replaces: W10222985N) |
|
$ 180.08 | |||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10222984N) |
|
$ 195.68 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 65.99 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 12 | WPW10393265 | Nameplate (black) (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 12 | WPW10391355 | Nameplate (white) (Replaces: W10391355) |
|
$ 72.05 | |||||
| 13 | 67001019 | Retainer, Ref Door (Replaces: 12557905) |
|
Immediately | $ 107.52 |
